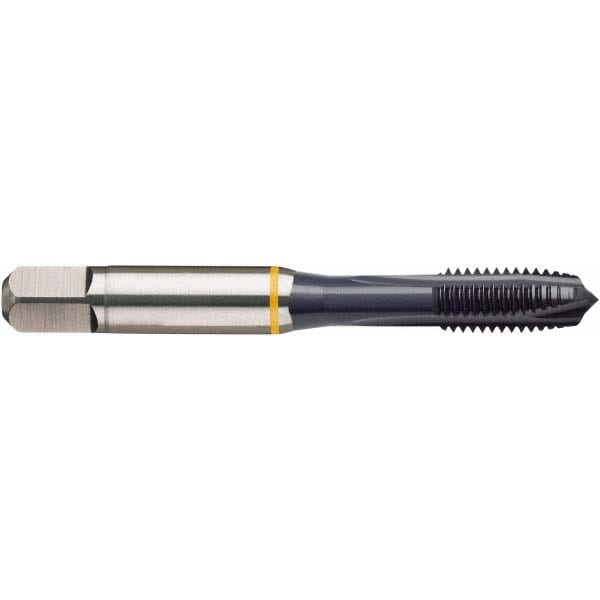

Spiral Point Tap: M14x2 Metric, 4 Flutes, Plug Chamfer, 6H Class of Fit, HSS-E Cobalt, Ignator Coated
Item #: 04645206
Brand: Guhring
Model #: 9048870140000
Product Specifications
| Thread Size (mm) | M14x2 |
| Thread Standard | Metric |
| Chamfer | Plug |
| Material | HSS-E Cobalt |
| Thread Limit | D5/D6 |
| Class Of Fit | 6H |
| Coating/Finish | Ignator |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Material Application | Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 12.7 |
| Overall Length (Decimal Inch) | 3.591 |
| Thread Pitch (mm) | 2 |
| Thread Length (Decimal Inch) | 1.6535 |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Application | Through-Hole Threading |
| Measurement Type | Decimal Inch |
| Series | 4887 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
