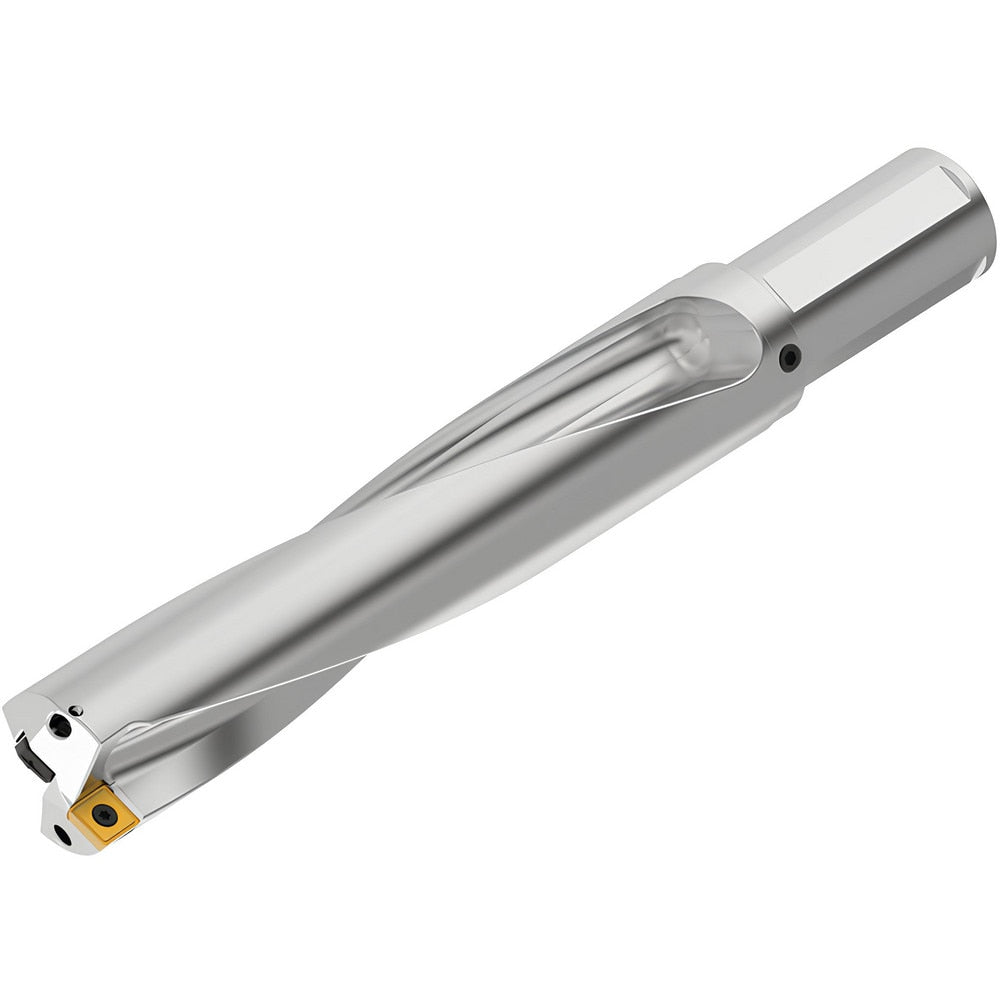

Indexable Insert Drill: DFPR2000R5SSF200, 2.0390" Max Dia, 10.0000" Max Depth, 5xD, 2.0000" Shank Dia
Item #: 02558229
Brand: Kennametal
Model #: 7030565
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (Decimal Inch) | 2.0390 |
| Maximum Drill Depth (Inch) | 10 |
| Maximum Drill Depth (Decimal Inch) | 10.0000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 170508; 150508 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 15.2200 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 10.0000 |
| Body Length | 285.00 |
| Body Length (Decimal Inch) | 11.2200 |
| Shank Length (Decimal Inch) | 4.0000 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.6810x0.2050; 0.6240x0.2050 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR170508__I; DFPR150508__O |
| Body Side Coolant Hole Thread Size (Inch) | 1/8-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M5-0.8x13T20 |
| Coolant Through | Yes |
