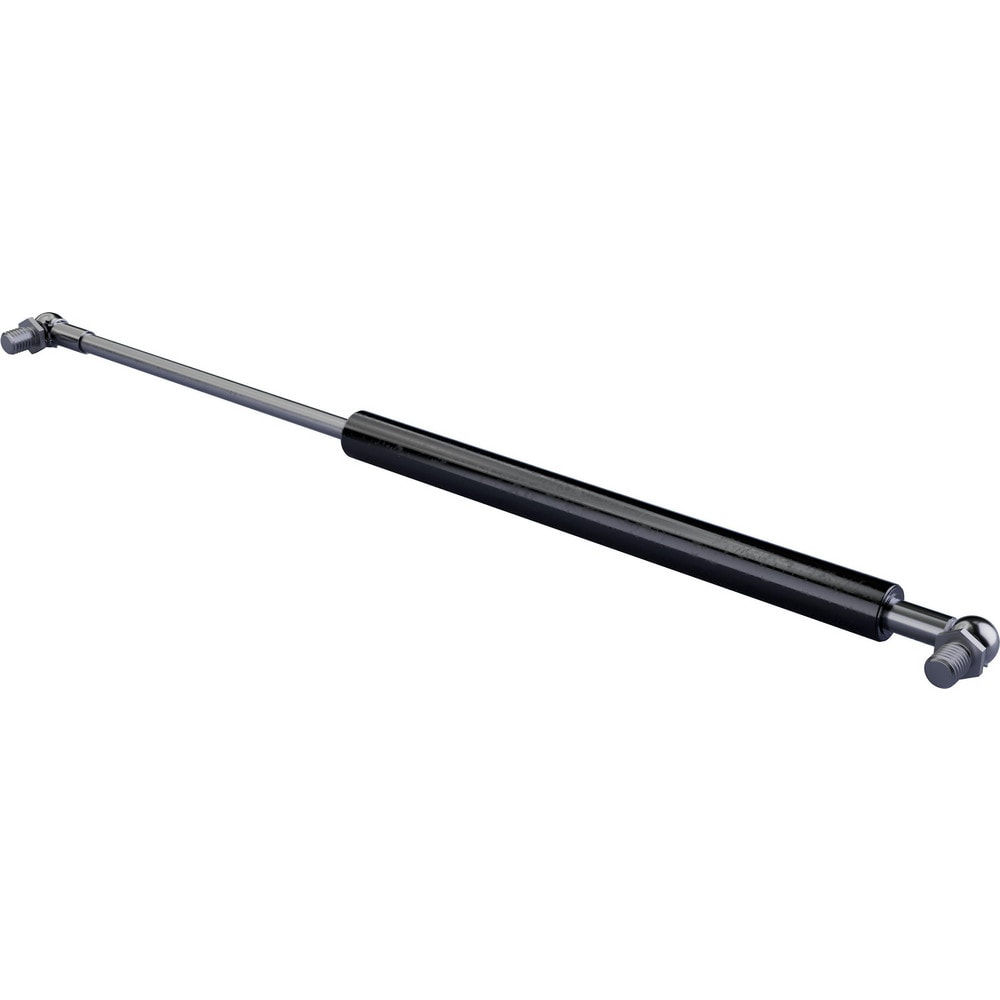

Extended Life Gas Spring: 0.3900" Rod Dia, 0.8700" Tube Dia, 150.00 lb Capacity
Item #: 02406338
Brand: Industrial Gas Springs
Model #: 15G010461JJ0667
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Carbon Steel |
| Rod Diameter (Decimal Inch) | 0.3900 |
| Tube Diameter (Decimal Inch) | 0.8700 |
| End Fitting Connection | Threaded End |
| Extended Length (Decimal Inch) | 34.7200 |
| Compressed Length (Decimal Inch) | 18.74 |
| Extension Force | 195 |
| Stroke Length (Decimal Inch) | 15.9800 |
| Thread Size (mm) | M10 x 1.5 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 150.00 |
| Special Item Information | Zinc-Plated Carbon Steel Ball Joint |
| Finish Coating | Coated |
| Spring Rate | 2.8000 |
| UNSPSC Code | 31162800 |
