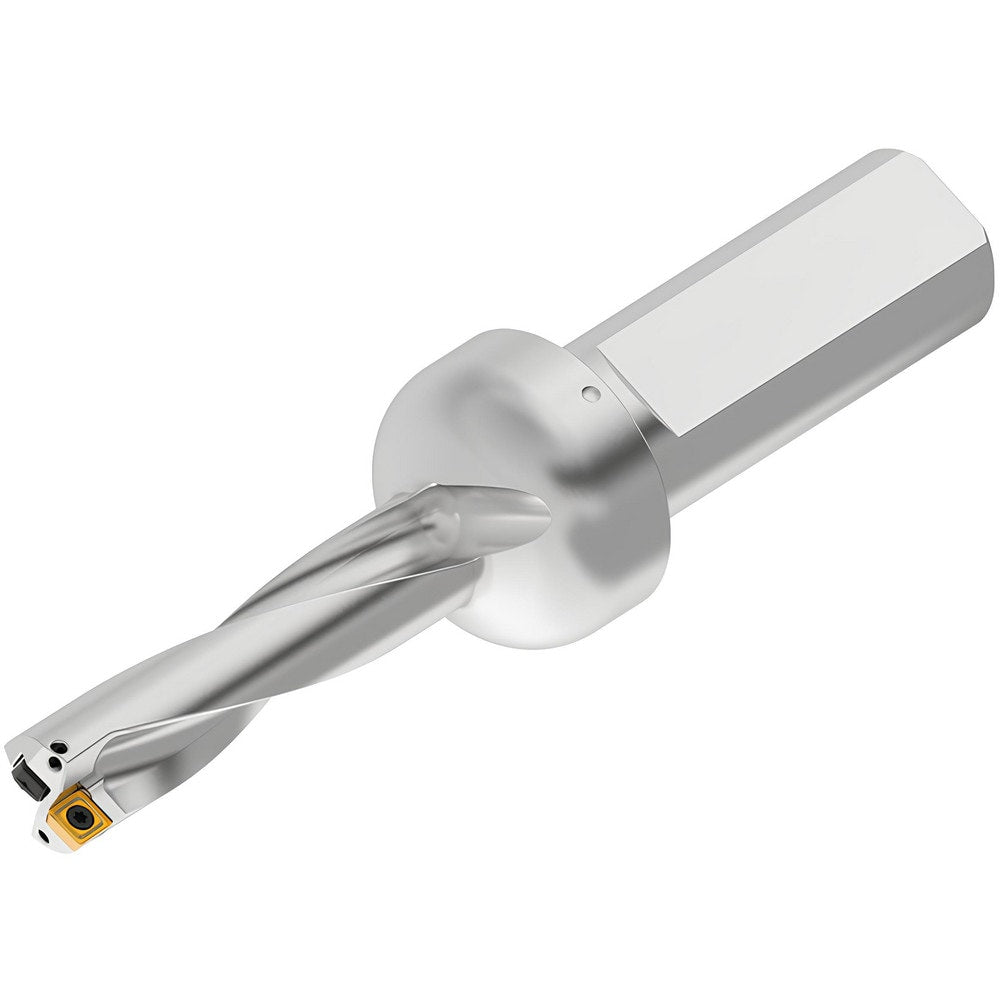

Indexable Insert Drill: DFPR0531R4WB075, 13.98 mm Max Dia, 53.95 mm Max Depth, 4xD, 19.05 mm Shank Dia
Item #: 04948394
Brand: Kennametal
Model #: 7031213
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 13.98 |
| Maximum Drill Diameter (Decimal Inch) | 0.5507 |
| Maximum Drill Depth (Decimal Inch) | 2.1240 |
| Maximum Drill Depth (mm) | 53.95 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 040204; 040203 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.8790 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 2.1240 |
| Flute Length (mm) | 56.95 |
| Body Length | 123.95 |
| Body Length (Decimal Inch) | 2.9110 |
| Shank Length (Decimal Inch) | 1.9680 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.1810x0.0790; 0.18x0.084 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR040203__I; DFPR040204__O |
| Collar Diameter (Decimal Inch) | 0.5079 |
| Collar Diameter (mm) | 12.90 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M1.8-0.35x3.8T5 |
| Coolant Through | Yes |
