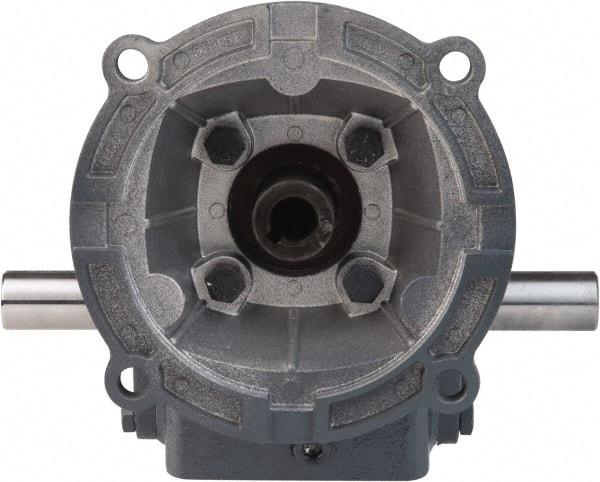

Boston Gear - 2.38 Centerline Distance, 15:1, 117 RPM Output, 2.34 Input Horsepower, 1,159 Lbs. Max Torque, Speed Reducer - Part No. F724-15-B7-H, Double Shaft Left & Right, 7/8" Bore, 4.88" High, 140TC NEMA
Item #: 80900186
Brand: Boston Gear
Model #: 51991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.380 |
| Ratio | 15:1 |
| NEMA Size | 140TC |
| PartNo | F724-15-B7-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 4.88 |
| Maximum Torque Inch/Lbs (Pounds) | 1159.00 |
| Maximum Input Horsepower | 2.34 |
| Output RPM at 1750 Input | 117.0 |
