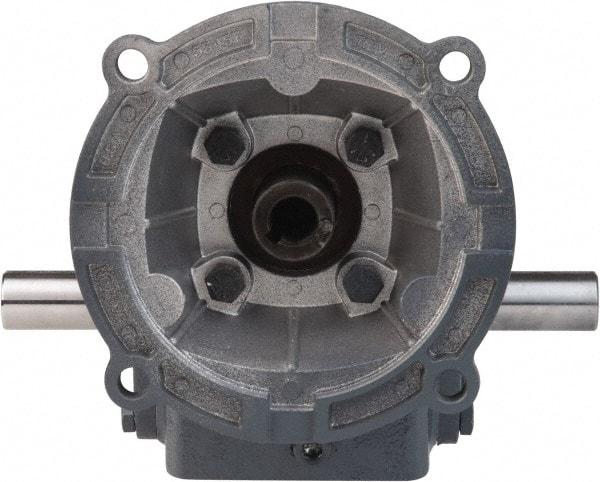

Boston Gear - 6 Centerline Distance, 10:1, 175 RPM Output, 26.13 Input Horsepower, 8,658 Lbs. Max Torque, Speed Reducer - Part No. RF760-10-B13-H, Double Shaft Left & Right, 1-5/8" Bore, 12-1/2" High, 250TC NEMA
Item #: 80899677
Brand: Boston Gear
Model #: 52843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 6.000 |
| Ratio | 10:1 |
| NEMA Size | 250TC |
| PartNo | RF760-10-B13-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 1.6250 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 8658.00 |
| Maximum Input Horsepower | 26.13 |
| Output RPM at 1750 Input | 175.0 |
