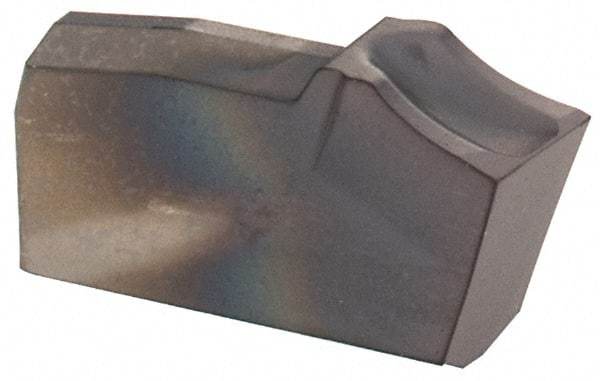

Kennametal - A2030 CM KC5025 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.0039" Cnr Rad, TiAlN Coated
Item #: 80757891
Brand: Kennametal
Model #: 1793767
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A2 |
| Insert Size | 030 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CM |
| Coating Process | PVD |
| Cutting Height (mm) | 4.70 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
