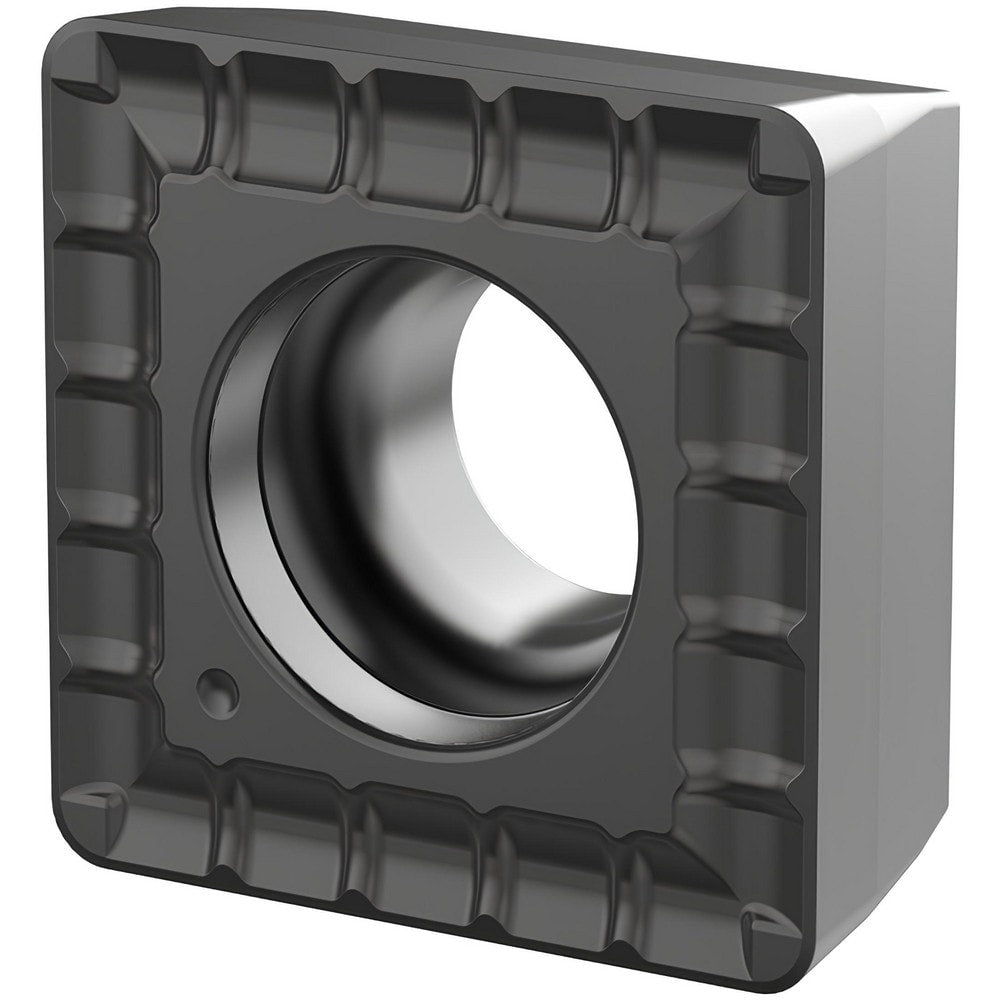

Indexable Drill Inserts; Insert Style: SPPX; Insert Material: Carbide; Manufacturer Grade: KCMS35; Thickness (Inch): 15/64; Inscribed Circle (Inch): 5/8
Item #: 02491421
Brand: Kennametal
Model #: 7064739
Product Specifications
| Insert Style | SPPX |
| Insert Material | Carbide |
| Manufacturer Grade | KCMS35 |
| Thickness (Inch) | 15/64 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Inch) | 3/64 |
| Chipbreaker | MD |
| Series | Drill Fix |
| Shape | Square |
| Relief Angle | 11 |
| Ansi Code | SPPX15T512MD |
| Iso Code | SPPX15T512MD |
| Compatible Drill Style | DFSP |
| Insert Size | 15 |
| Width (mm - 2 Decimals) | 15.73 |
| Length (Mm) | 15.73 |
| Width (Decimal Inch - 4 Decimals) | 0.619 |
| Length (Decimal Inch - 4 Decimals) | 0.619 |
| Included Angle Degree | 11 |
| Coating/Finish | AlTiN |
| Insert Size Code | 15 |
| UNSPSC Code | 23242105 |
