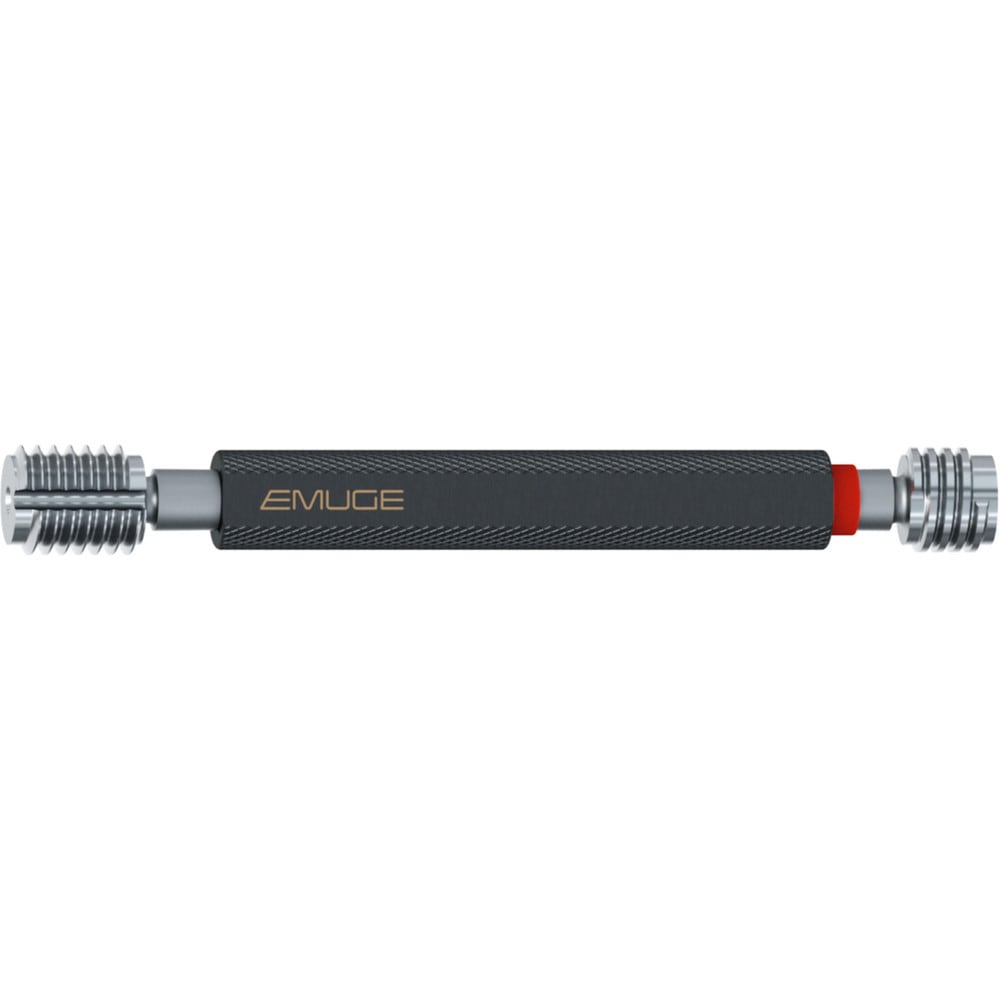

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: 7/16-14; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.3911; Go Pitch Diameter (mm): 9.9340; No Go Pitch Diameter (mm): 10.0510; No Go Pitch Diameter (Decimal Inch): 0.39570
Item #: 02813640
Brand: Emuge
Model #: L0100160.5012
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | 7/16-14 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.3911 |
| Go Pitch Diameter (mm) | 9.9340 |
| No Go Pitch Diameter (mm) | 10.0510 |
| No Go Pitch Diameter (Decimal Inch) | 0.39570 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 4.2120 |
| Overall Length (mm) | 107.0000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | NIST; DIN2280; Gauge dimensions according to ANSI/ASME B1.10 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNC |
| UNSPSC Code | 41111619 |
