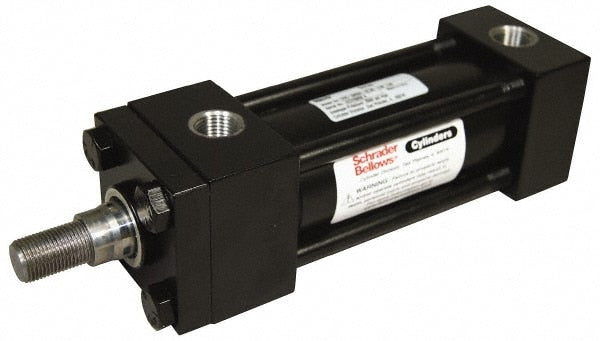

NFPA Tie Rod Cylinders; Actuation: Double Acting; Bore Diameter: 4.0000; Rod Diameter: 1.75 in; Body Material: Steel; Port Size: 3/4 in; Stroke Length: 4.00
Item #: 83055046
Brand: Schrader Bellows
Model #: 1HHV3B40004000
Product Specifications
| Actuation | Double Acting |
| Bore Diameter | 4.0000 |
| Rod Diameter | 1.75 in |
| Body Material | Steel |
| Port Size | 3/4 in |
| Stroke Length | 4.00 |
| Mount Type | Bolt-On |
| Thread Size | 1-1/4-12 |
| UNSPSC Code | 27121602 |
| Country of Origin | UNITED STATES |
