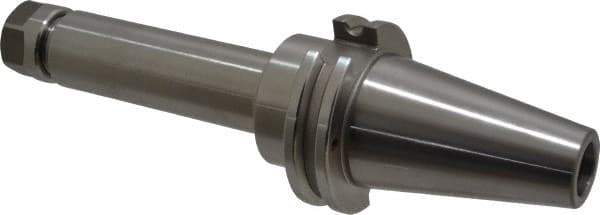

Accupro - 0.02" to 0.433" Capacity, 6" Projection, CAT40 Taper Shank, ER16 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 80265267
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.4330 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.2600 |
