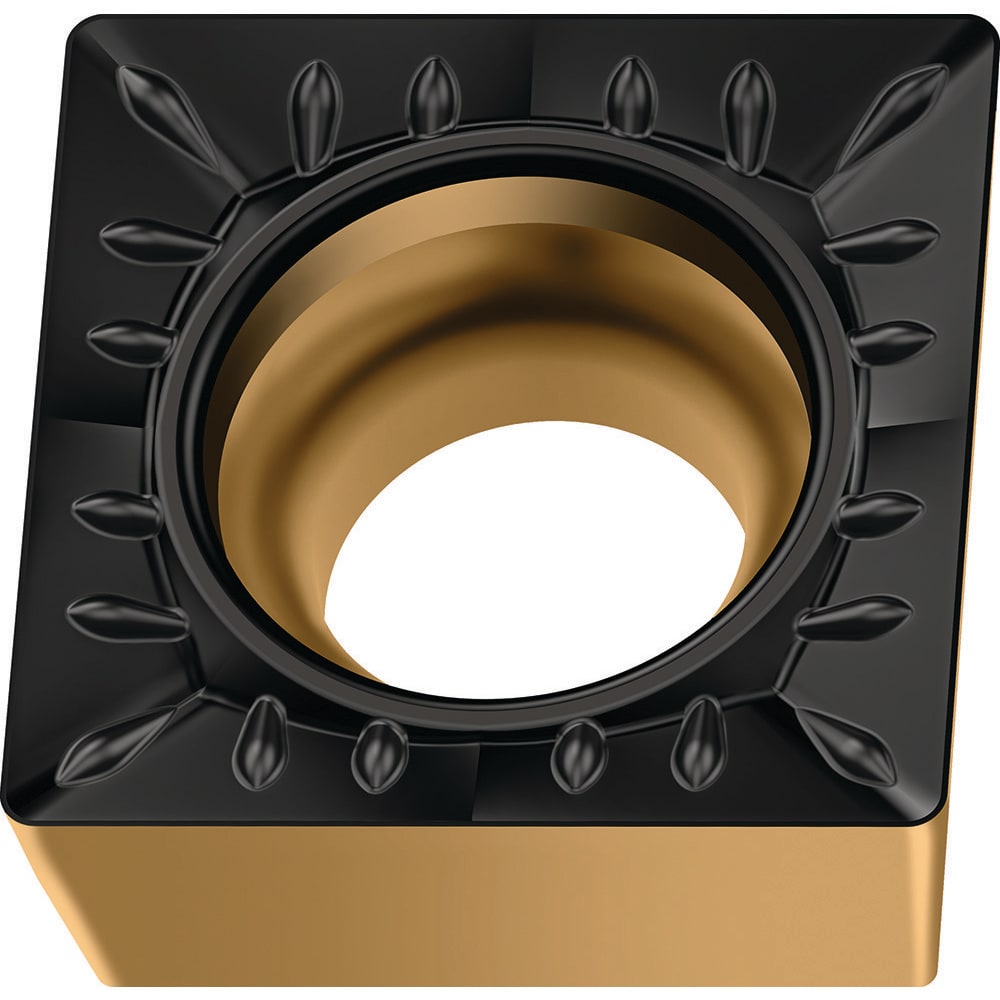

Turning Insert: SCMT433RP4 WPP30G, Carbide
Item #: 91636100
Brand: Walter
Model #: 8204954
Product Specifications
| ANSI Insert Code | SCMT433 |
| ISO Insert Code | SCMT120412 |
| Relief Angle | 7.000 |
| Insert Style | SCMT |
| Corner Radius (mm) | 1.20 |
| Included Angle | 90.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | SCMT |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Chip Breaker Operation | Roughing |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.5000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 12.70 |
| Manufacturers Catalog Number | SCMT120412-RP4 WPP30G |
| Chip Breaker | RP4 |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 433 |
| ISO Size Code | 120412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 12 |
| Country of Origin | Germany |
