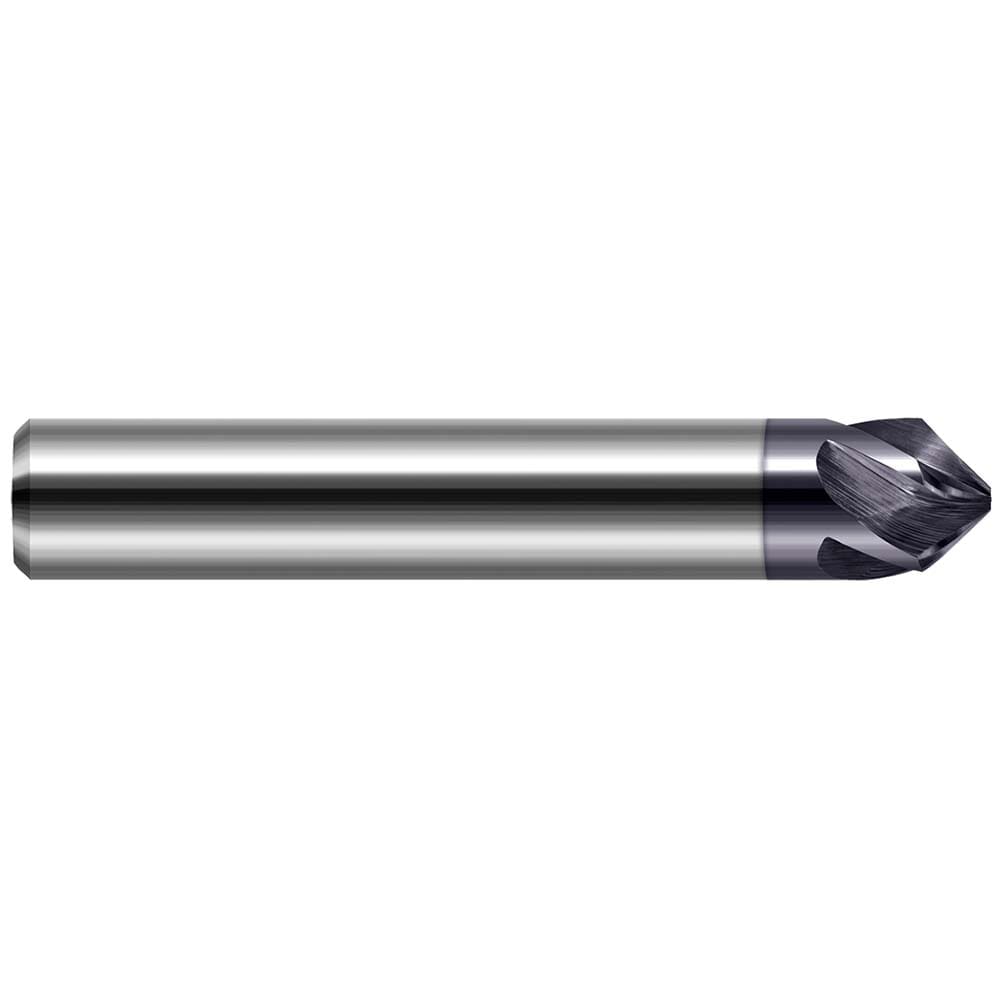

Chamfer Mill: 1/4" Dia, 1/4" Shank Dia, 5 Flute, Solid Carbide, Single End
Item #: 06171094
Brand: Harvey Tool
Model #: 738216-C3
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 1/4 |
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| End Type | Single |
| Length of Cut (Inch) | 7/64 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Number Of Flutes | 5 |
| Cutting Direction | Right Hand |
| Series | Chamfer Cutters - Pointed & Flat End - Helical Flutes |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1090 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23241600 |
