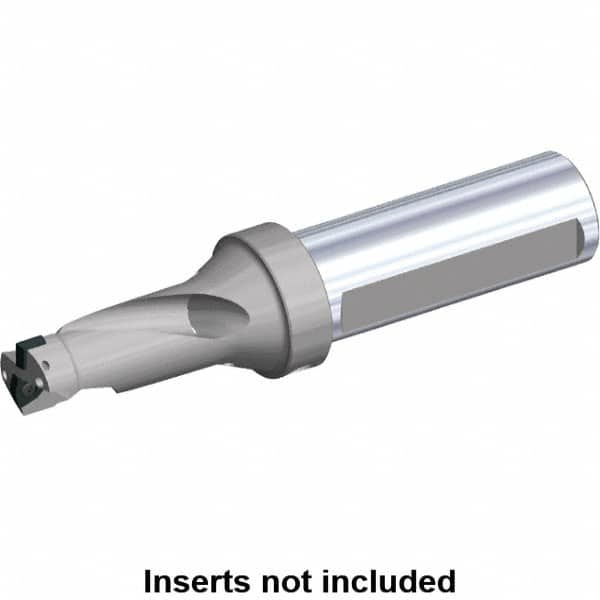

2″ Max Drill Depth, 2xD, 1″ Diam, Indexable Insert Drill Drill Style DFSP, Takes 2 Inserts, 1-1/2″ Shank Diam, Cylindrical Straight Shank
Item #: 79963385
Brand: Kennametal
Model #: 5691830
Product Specifications
| Drill Style | DFSP |
| Drill Diameter (Decimal Inch) | 1.0000 |
| Maximum Drill Diameter (Decimal Inch) | 1.0000 |
| Drill Diameter (Inch) | 1 |
| Maximum Drill Depth (Inch) | 2 |
| Maximum Drill Depth (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 1-1/2 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2xD |
| Series | Drill-Fix |
| Flute Length (mm) | 60.00 |
| Body Length (Decimal Inch) | 3.2500 |
| Shank Length (Decimal Inch) | 3.7500 |
| Overall Length/Projection (Inch) | 7 |
| Insert Compatibility (Outside or Peripheral) | SPGX0703.. |
| Insert Compatibility | DFT05T3.. |
| Coolant Through | Yes |
