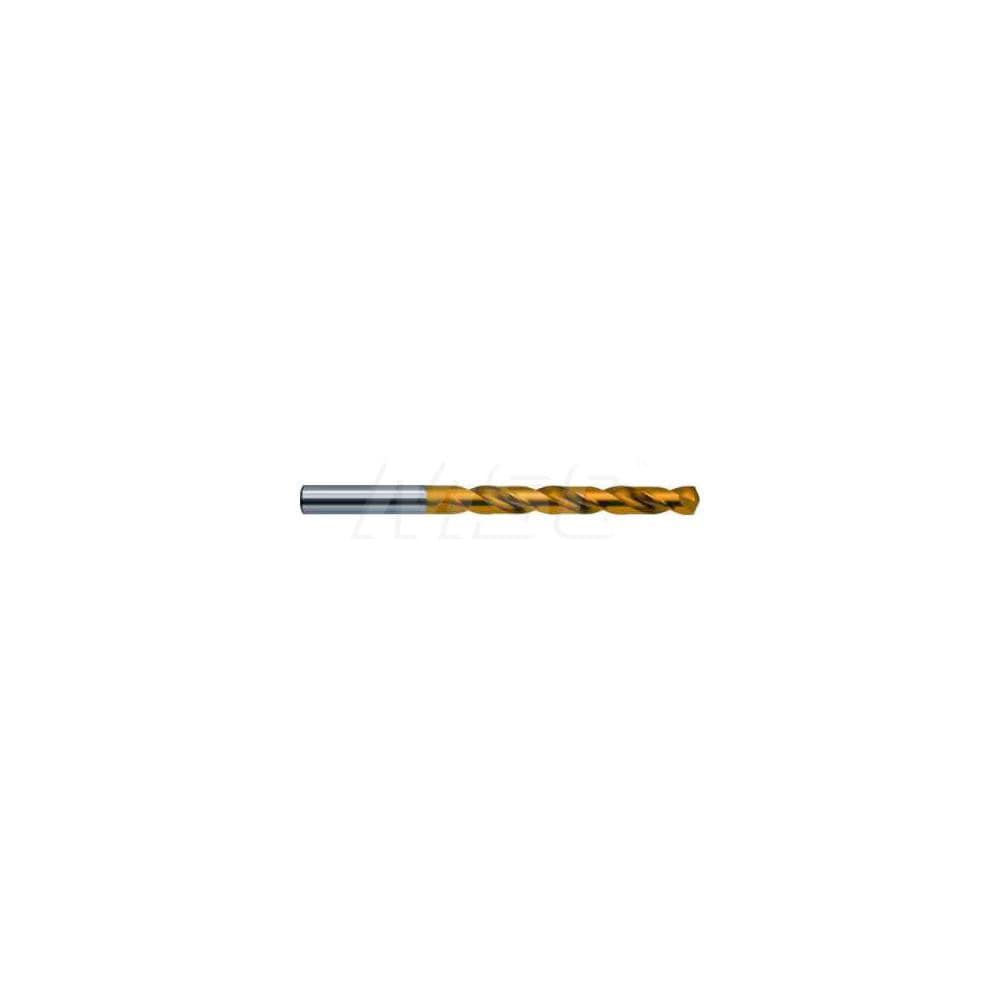

Brand: Guhring / Part #: 9006570019500
Item #: 81759334
Brand: Guhring
Model #: 9006570019500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0768 |
| Drill Bit Size (mm) | 1.95 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0768 |
| Overall Length (mm) | 49.00 |
| Overall Length (Decimal Inch) | 1.9291 |
| Flute Length (mm) | 24.00 |
| Flute Length (Decimal Inch) | 0.9449 |
| Series | 657 |
| Tool Application | Self-Centering |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.95 |
| Maximum Drilling Depth (Decimal Inch) | 0.9449 |
| Maximum Drilling Depth (mm) | 24.00 |
| Shank Length (mm) | 25.00 |
| Shank Length (Decimal Inch) | 0.9843 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Material Grade | M35 |
| Specification Designation | DIN |
