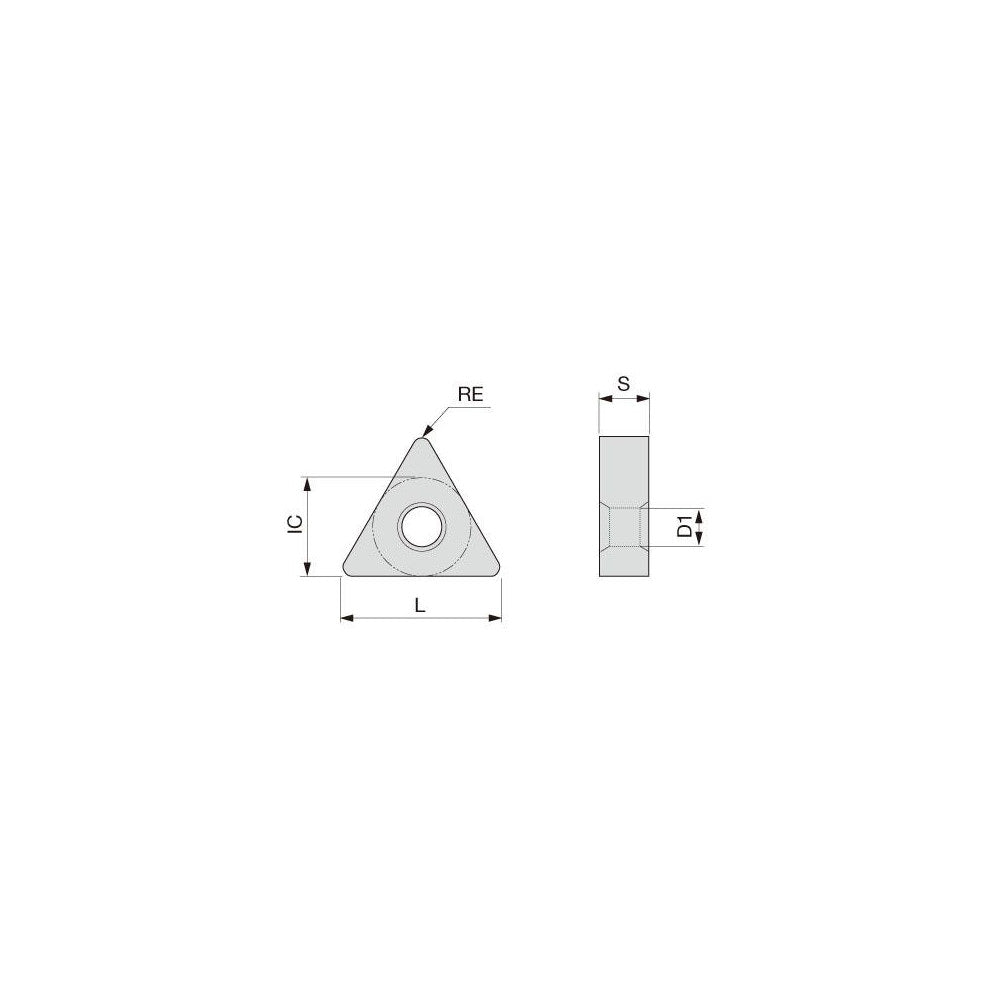

Turning Insert: TNMG434 TH10, Carbide
Item #: 20867875
Brand: Tungaloy
Model #: 6808688
Product Specifications
| ANSI Insert Code | TNMG434 |
| ISO Insert Code | TNMG220416 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0629 |
| Included Angle | 60 |
| Manufacturer Grade | TH10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | TNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | TNMG220416 TH10 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6808688 |
| Material Grade | K10; N10; M10; P10 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | Common |
| Rake Angle | -15 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | TNMG 434 |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 434 |
| ISO Size Code | 220416 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 434 |
