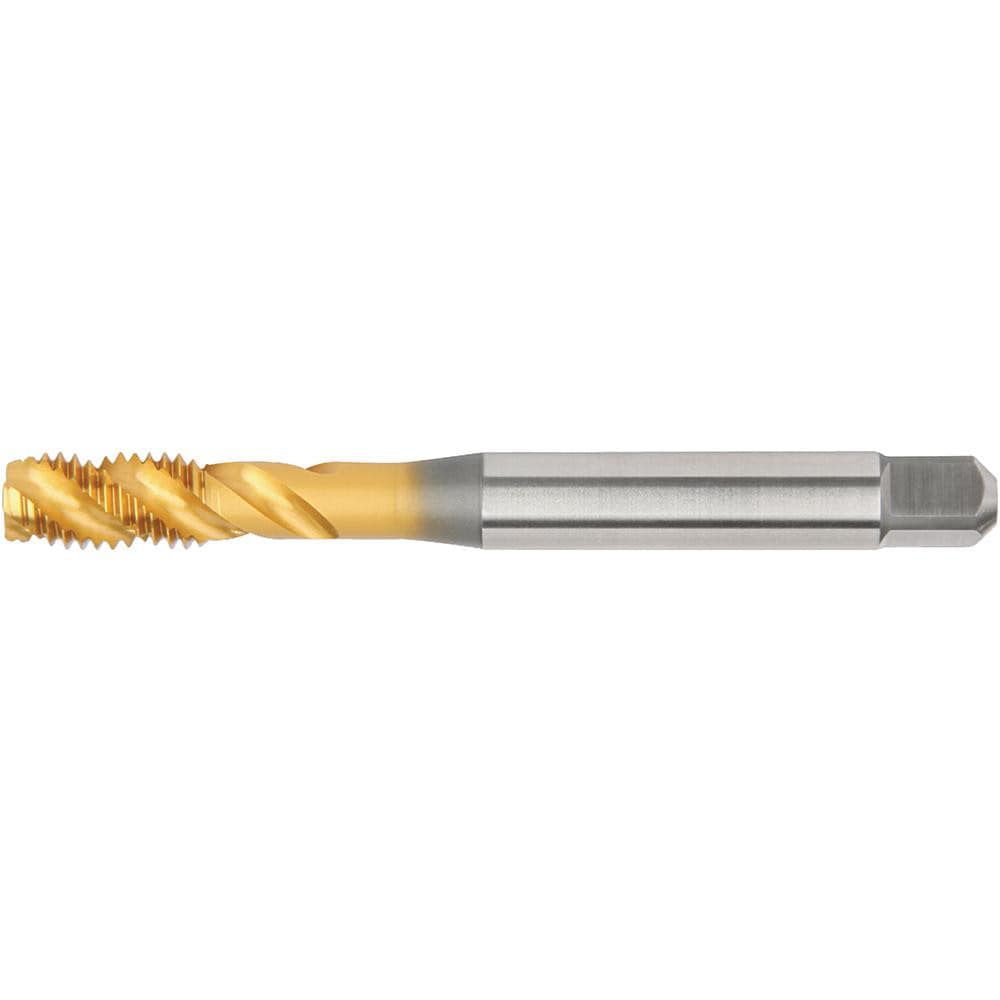

Brand: Widia / Part #: 6172799
Item #: 97612022
Brand: Widia
Model #: 6172799
Product Specifications
| Thread Size (Inch) | 1/4-28 |
| Chamfer | Plug |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 28 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3900 |
| Overall Length (Decimal Inch) | 3.1500 |
| Thread Depth (Decimal Inch) | 1.4200 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.1772 |
| Square Size (Decimal Inch) | 0.1340 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
