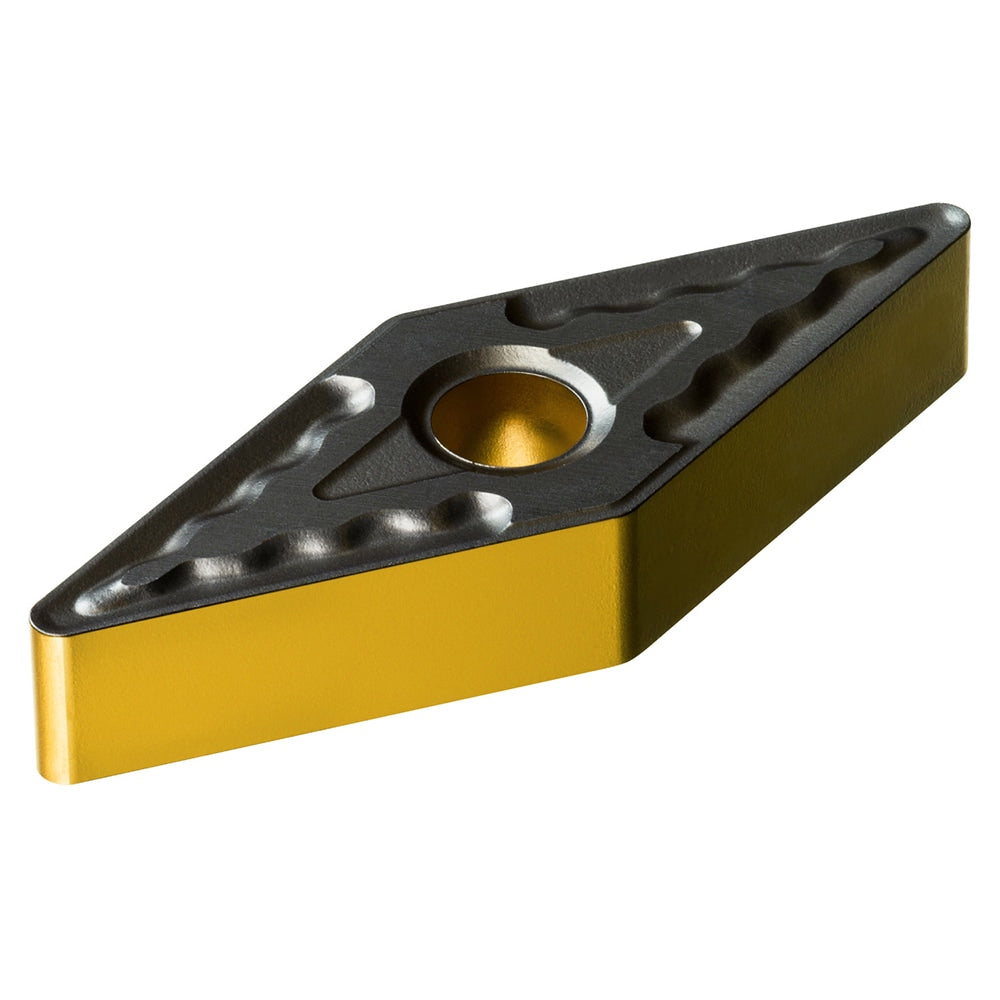

Brand: Sandvik Coromant / Part #: 8132482
Item #: 17674045
Brand: Sandvik Coromant
Model #: 8132482
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 1604 |
| Insert Shape | Diamond 35? |
| Manufacturer Grade | S205 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Insert Material | Solid Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | N |
| Tolerance Code | M |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloys & Titanium |
| Iso Code | VNMG 16 04 12-QM S205 |
| Manufacturers Catalog Number | VNMG 16 04 12-QM S205 |
| Chip Breaker | QM |
