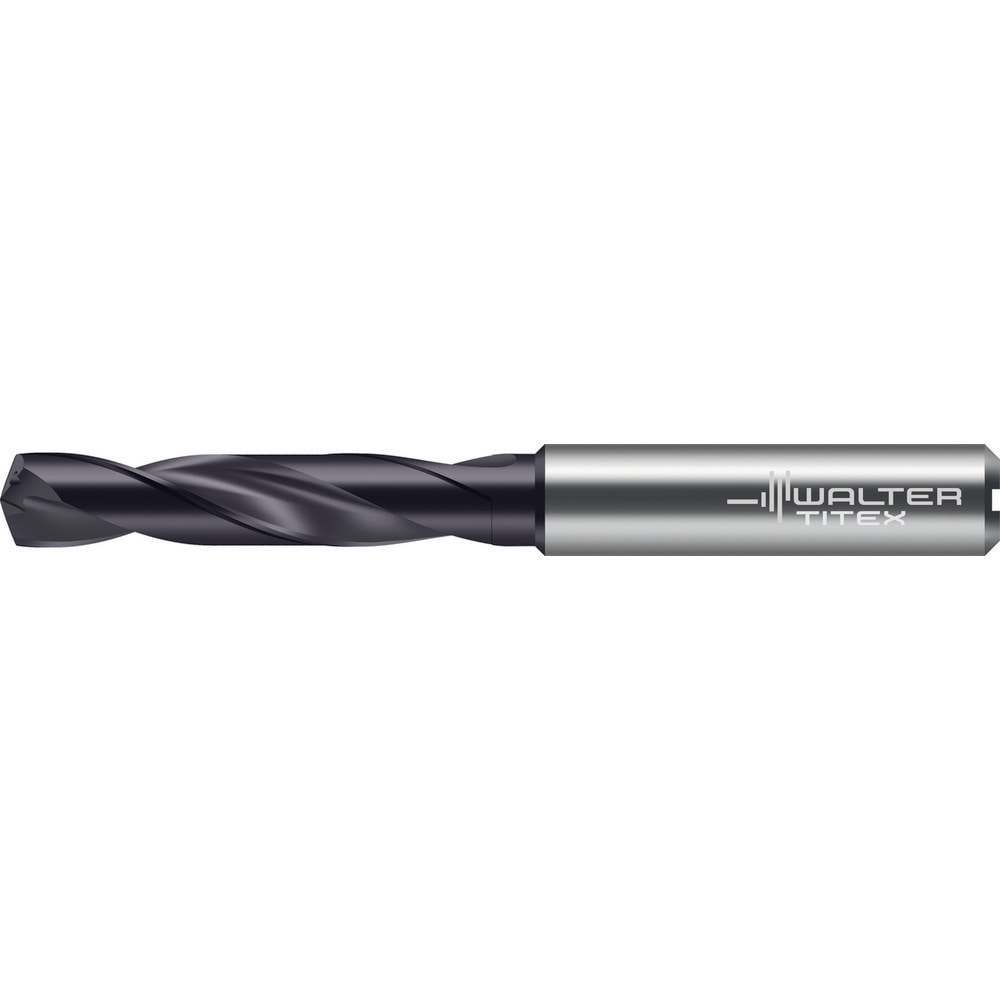

Screw Machine Length Drill Bits; Drill Bit Size (mm): 18.00; Drill Bit Size (Decimal Inch): 0.7087; Tool Material: Solid Carbide; Cutting Direction: Right Hand; Coating/Finish: Multi-layer
Item #: 82885336
Brand: Walter-Titex
Model #: 8324914
Product Specifications
| Drill Bit Size (mm) | 18.00 |
| Drill Bit Size (Decimal Inch) | 0.7087 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Standard |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 123.00 |
| Shank Diameter (mm) | 18.00 |
| Series | DC180 |
| Proprietary Coating/Finish | Krato-tec |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 51.00 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 3.28 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 73.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
