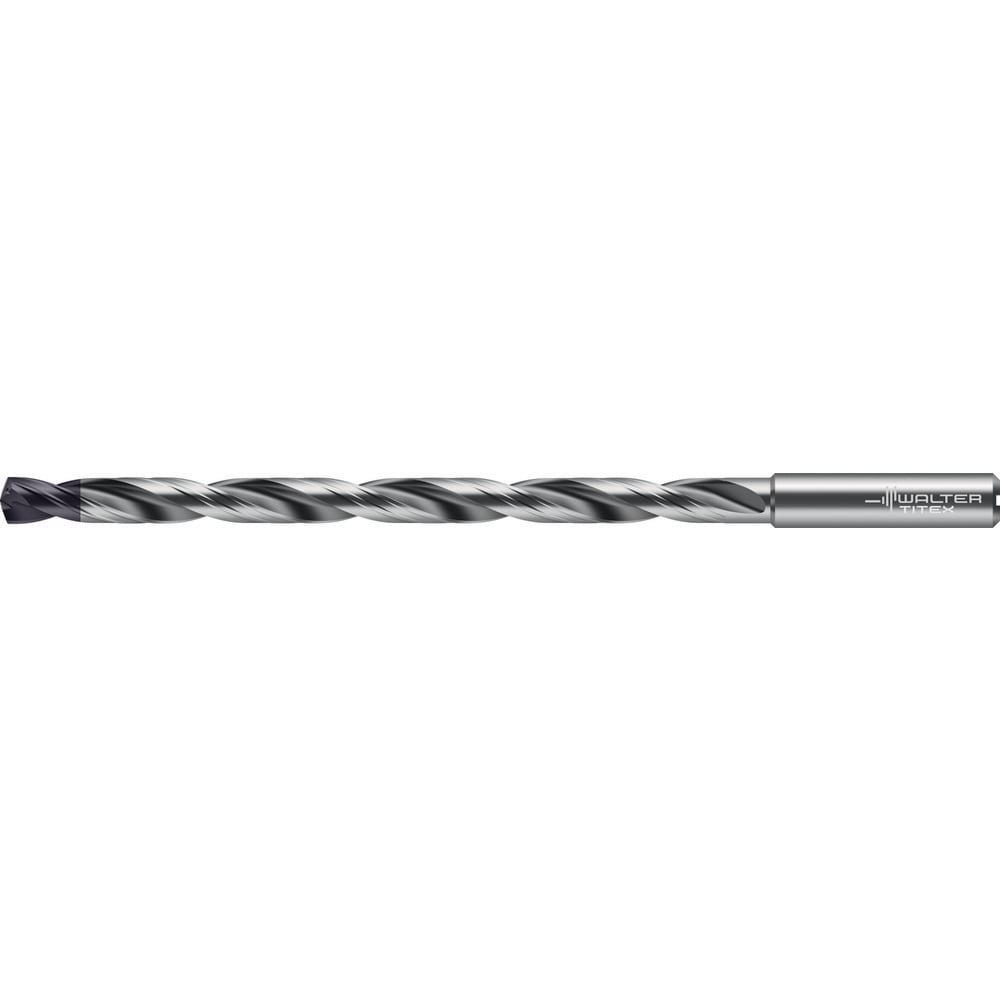

Extra Length Drill Bit: 0.3071", 140 °, Carbide
Item #: 82347337
Brand: Walter-Titex
Model #: 8325318
Product Specifications
| Drill Bit Size (mm) | 7.80 |
| Overall Length (mm) | 148.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 110.00 |
| Point Type | Standard |
| Series | DC180 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3071 |
| Drill Point Length (mm) | 1.42 |
| Drill Point Length (Decimal Inch) | 0.0559 |
| Overall Length (Decimal Inch) | 5.8268 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.0000 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Flute Length (Decimal Inch) | 4.3307 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 3.8583 |
| Maximum Drilling Depth (mm) | 98.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
