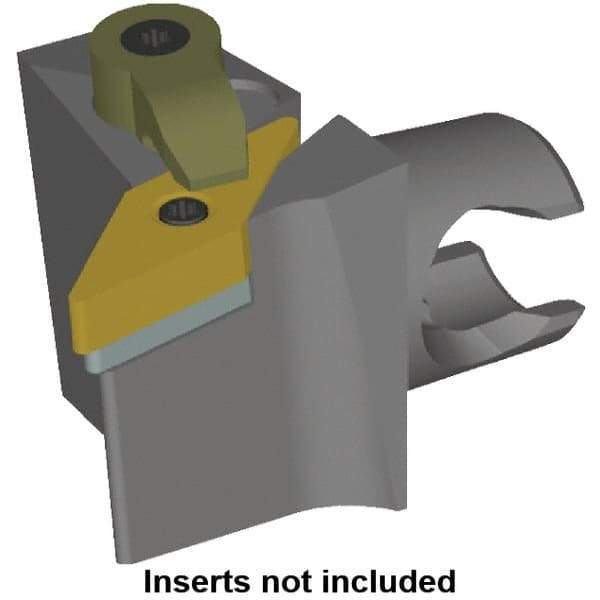

Kennametal - Left Hand Cut, Size KM20, VN.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 12.5mm Ctr to Cutting Edge, 30mm Head Length, Series KM Mini
Item #: 79435582
Brand: Kennametal
Model #: 3487547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM20 |
| Series Name | KM Mini |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 30.00 |
| Head Length/Projection (Decimal Inch) | 1.1811 |
| Insert Style | VN.. |
| Center to Cutting Edge (mm) | 12.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4921 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Height (mm) | 9.50 |
| Center to Cutting Height (Decimal Inch) | 0.3740 |
| Complete Insert Compatibility | VN..332; VN..160408 |
