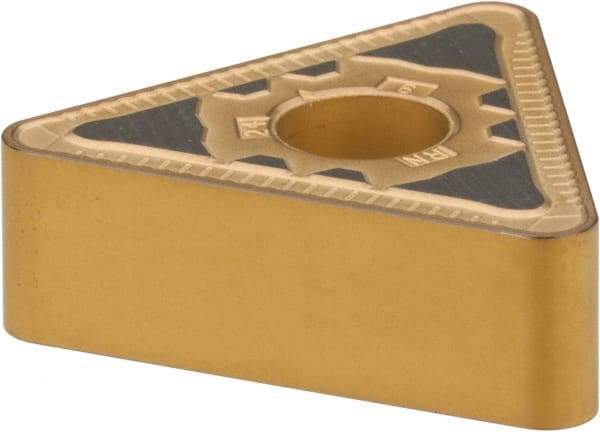

Kennametal - TNMG666 RN Grade KC9110 Carbide Turning Insert - TiCN/Al2O3/TiCN/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 79260972
Brand: Kennametal
Model #: 1864698
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 666 |
| Material | Carbide |
| Length (mm) | 33.00 |
| Length (Decimal Inch) | 1.2992 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | KC9110 |
| Coating | TiCN/Al2O3/TiCN/TiN |
| Material Grade | C3/C7 |
| Chip Breaker | RN |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
