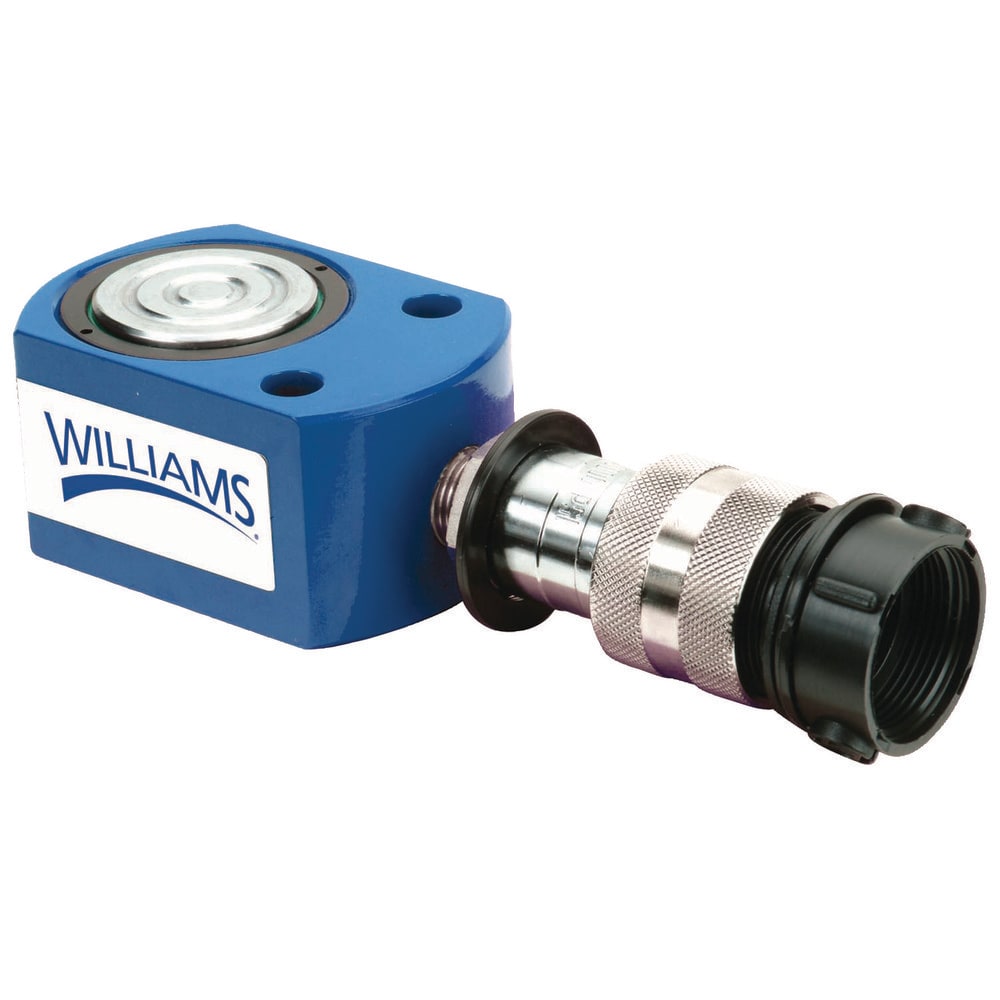

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 10 TON; Stroke Length: .43; Piston Stroke (Decimal Inch): .43; Oil Capacity: 1.01; Cylinder Effective Area: 2.36; Lowered Height: 1.69
Item #: 33255324
Brand: Williams
Model #: 6CF10T05
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 10 TON |
| Stroke Length | .43 |
| Piston Stroke (Decimal Inch) | .43 |
| Oil Capacity | 1.01 |
| Cylinder Effective Area | 2.36 |
| Lowered Height | 1.69 |
| Retracted Length | 1.69 |
| Extended Length | 2.12 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.3 |
| Rod Diameter | 1.73 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Saddle Diameter | .98 |
| Y Center Hole Diameter | 1.73 |
| Maximum Height (Inch) | 2.12 |
| For Use With | Lifting |
