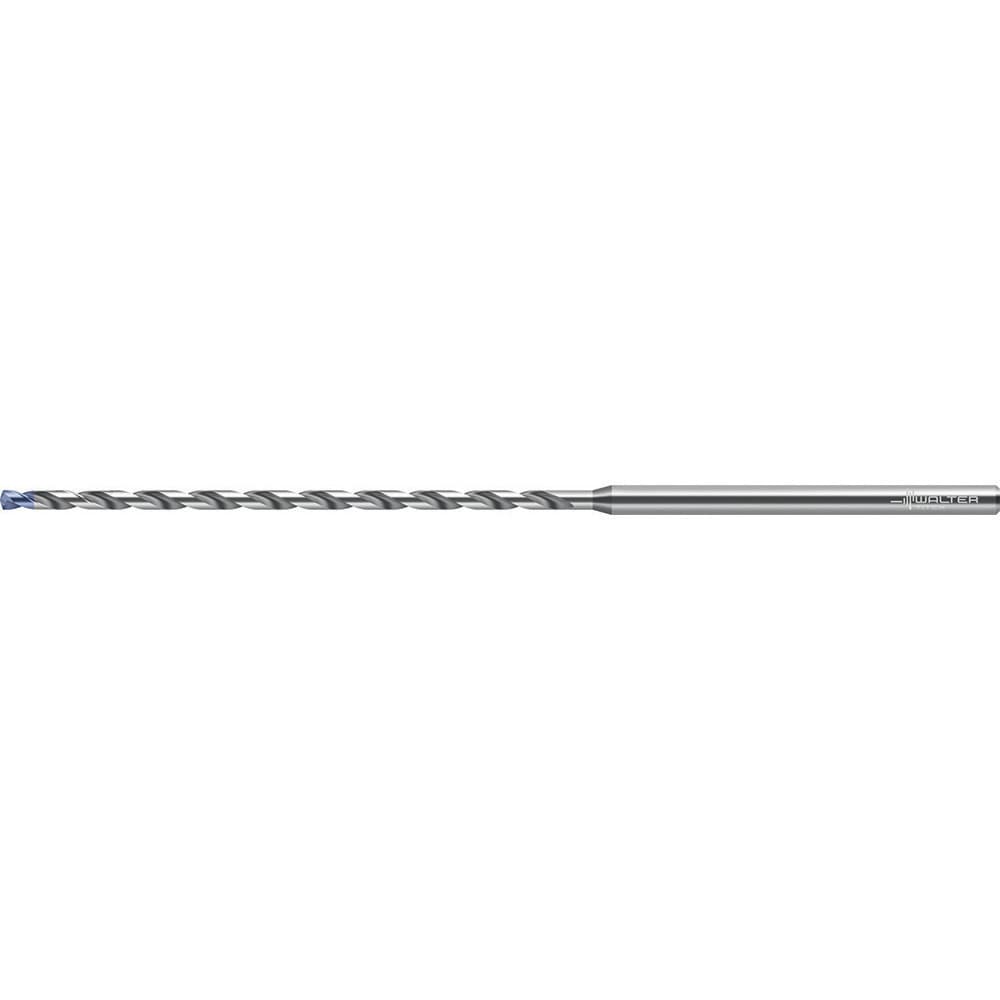

Micro Drill Bit: 3/32" (0.0937") Dia, 2.38 mm Dia, (0.0937"), 140 deg, Solid Carbide
Item #: 89984033
Brand: Walter-Titex
Model #: 8184827
Product Specifications
| Drill Bit Size (Inch) | 3/32 |
| Drill Bit Size (mm) | 2.38 |
| Drill Bit Size (Decimal Inch) | 0.0937 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 2.6772 |
| Flute Length (mm) | 68.00 |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 64.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.5197 |
| Number Of Flutes | 2 |
| Series | DB133 |
| Overall Length (Decimal Inch) | 4.2126 |
| Overall Length (mm) | 107.00 |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole |
| Drill Bit Diameter Tolerance | h7 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.000 |
| Flute By Diameter Ratio | 25xD |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| Country of Origin | France |
