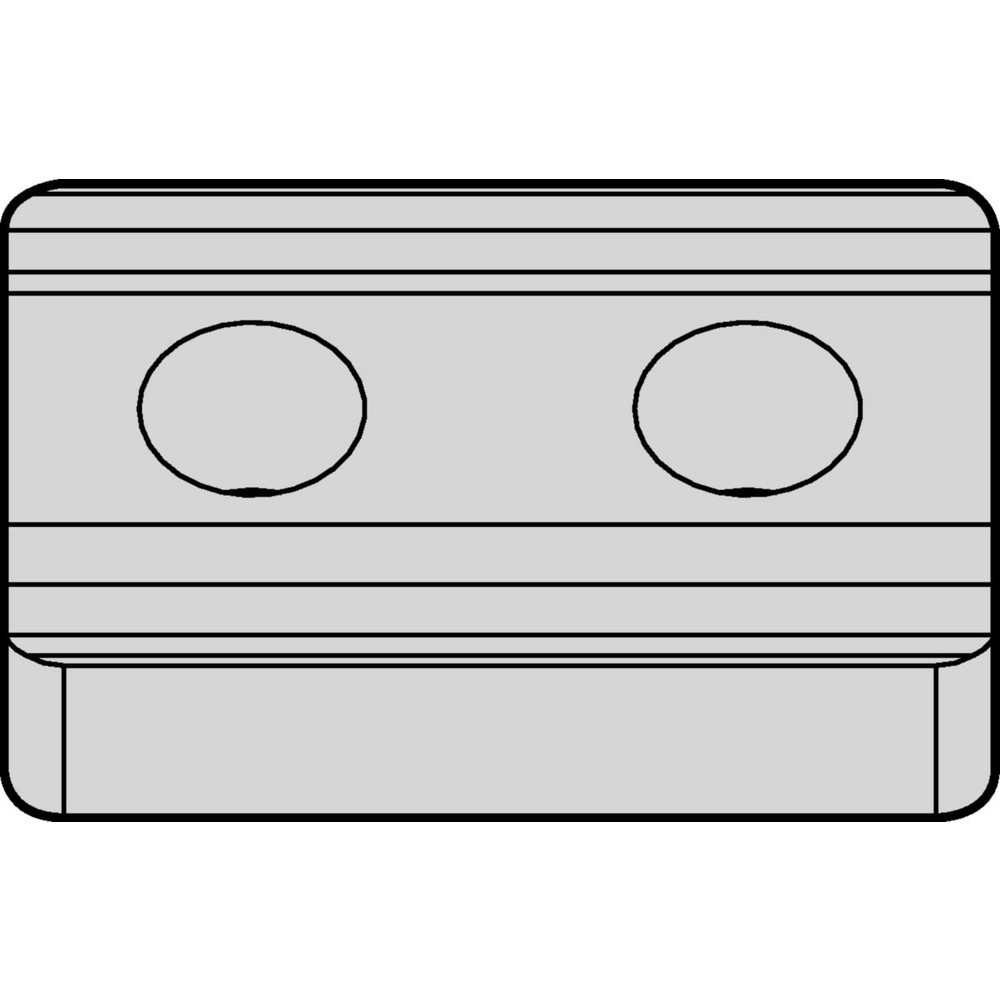

Brand: Widia / Part #: 2012231
Item #: 91918698
Brand: Widia
Model #: 2012231
Product Specifications
| Insert Style | LNUX |
| Insert Shape Code | L |
| Insert Size Code | 400924 |
| Insert Shape | Rectangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | TTR |
| Corner Radius (Decimal Inch) | 0.0944 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Inscribed Circle (Inch) | 1 |
| Insert Holding Method | Screw |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | U |
| Included Angle | 90.00 |
| Relief Angle | 0.000 |
| Series | LNUX |
| Coating Process | Uncoated |
| Insert Length (mm) | 40.00 |
| Number Of Cutting Edges | 4 |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | LNUX400924EN95 |
| Iso Code | LNUX400924EN95 |
| Coating Classification | Uncoated |
| Chip Breaker | EN95 |
| Style | LNUX |
