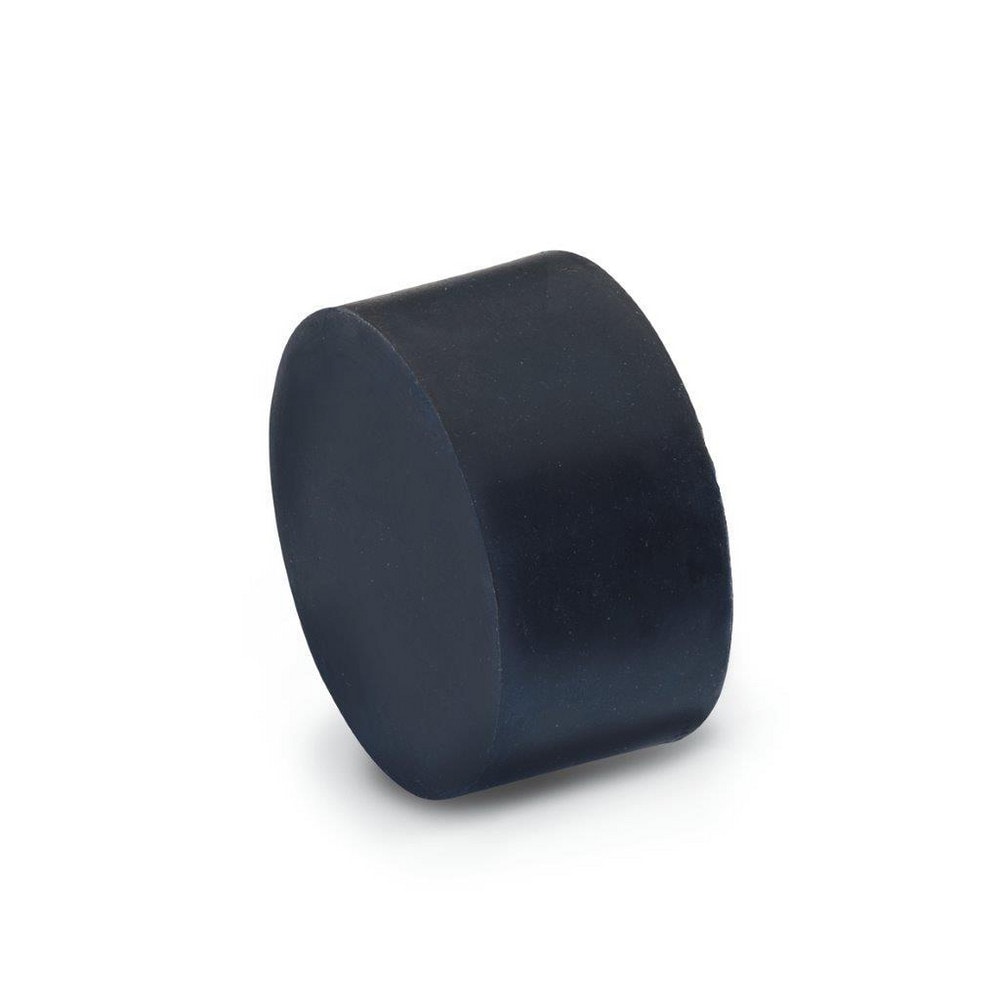

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 1779.28 N; Top Diameter: 38.00; Bottom Diameter: 38; Thread Size: 5/16-18; Overall Width: 38 mm
Item #: 71018352
Brand: J.W. Winco
Model #: 452.2-38-25-5/16-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1779.28 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 38 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 10.0000 |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 25 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1779.28 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 38 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 10.0000 |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 25 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71018352 |
| Mfr Part # | 452.2-38-25-5/16-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
