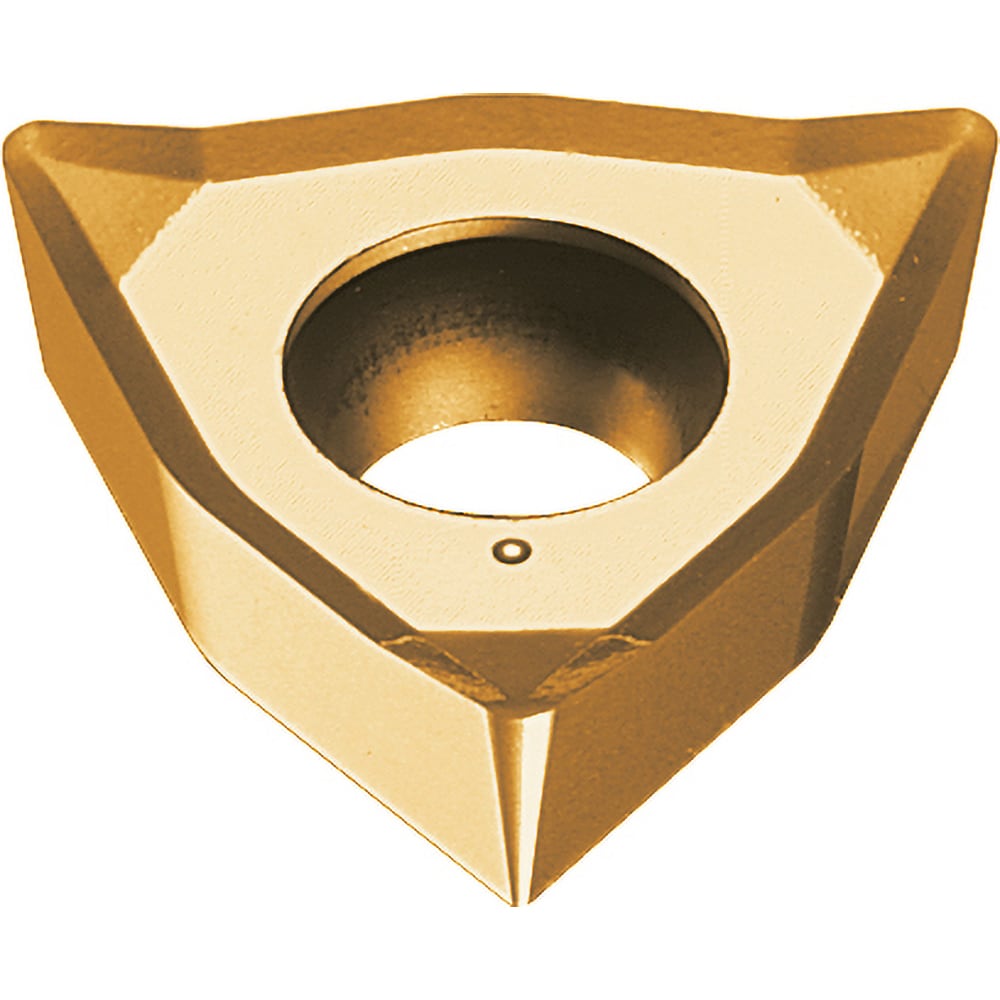

Turning Insert: WCGT1.210.5FN-ALU AK20, Carbide
Item #: 15586753
Brand: Arno
Model #: 61994
Product Specifications
| ANSI Insert Code | WCGT1.210.5 |
| ISO Insert Code | WCGT060102 |
| Relief Angle | 7 |
| Insert Style | WCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80 |
| Manufacturer Grade | AK20 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/16 |
| Insert Thickness | 1.59 |
| Insert Thickness (Decimal Inch) | 0.0626 |
| Series | WCGT |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Inscribed Circle (mm) | 3.97 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2126 |
| Insert Length (mm) | 2.70 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Iso Code | WCGT 020102FN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 61994 |
| Material Grade | N15; N30 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | WCGT1.210.5FN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.2126 |
| Width (mm - 2 Decimals) | 3.97 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 1.210.5 |
| ISO Size Code | 060102 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.210.5 |
