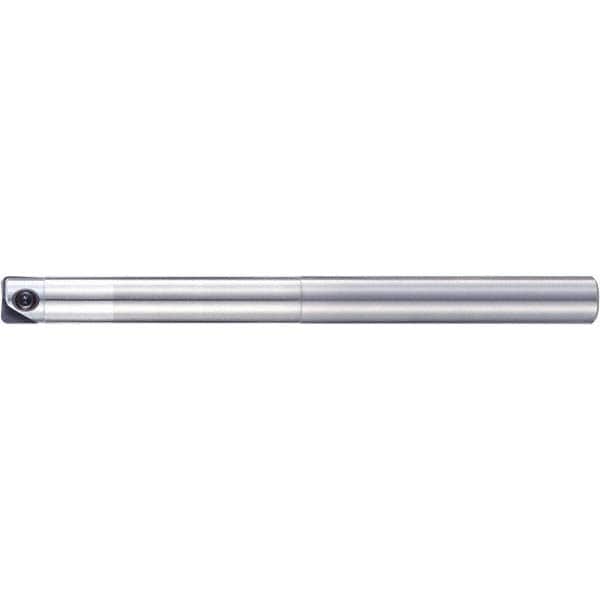

Indexable Square-Shoulder End Mill: PFR-R080SS08-LL140CS, 8 mm Cut Dia, 84 mm Max Depth of Cut, 8 mm Dia Cylindrical Shank
Item #: 55703292
Brand: OSG
Model #: 7832020
Product Specifications
| Cutting Diameter | 0.3150 in |
| Cutting Diameter (mm) | 8.00 |
| Overall Length (mm) | 140.00 |
| Maximum Depth of Cut (mm) | 84.00 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78320 |
| Lead Angle | 0 |
| Head Length (mm) | 140.00 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Cutting Diameter | 0.3150 in |
| Cutting Diameter (mm) | 8.00 |
| Overall Length (mm) | 140.00 |
| Maximum Depth of Cut (mm) | 84.00 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 8.00 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 78320 |
| Lead Angle | 0 |
| Head Length (mm) | 140.00 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| MSC Part # | 55703292 |
| Mfr Part # | 7832020 |
| Country of Origin Country of Origin is subject to change | Japan |
