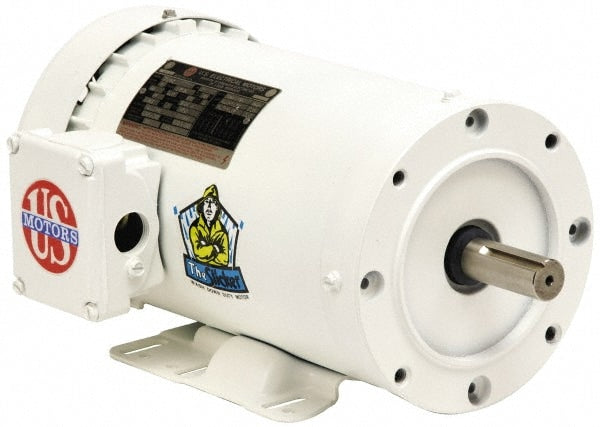

Three Phase Premium Efficient AC Motor: C-Face with Base & TEFC Enclosure
Item #: 73629974
Brand: US Motors
Model #: WD5P2DC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | C-Face with Base;TEFC |
| Horsepower | 5 |
| Name Plate RPMs | 1755;1435 |
| Voltage | 460V; 380V; 190V; 208-230V |
| Frequency (Hz - 0 Decimals) | 60;50 |
| Frame Size | 184 |
| Mount Style | C-Face with Base |
| Mount Type | C-Face with Base |
| Bearing Type | Double Sealed Ball |
| Full Load Amperage | 13.5 - 12.5/6.2 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| Applications | Food Processing |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
| UNSPSC Code | 26111600 |
| Motor Type | Three Phase Premium Efficient |
| Enclosure Style | C-Face with Base;TEFC |
| Horsepower | 5 |
| Name Plate RPMs | 1755;1435 |
| Voltage | 460V; 380V; 190V; 208-230V |
| Frequency (Hz - 0 Decimals) | 60;50 |
| Frame Size | 184 |
| Mount Style | C-Face with Base |
| Mount Type | C-Face with Base |
| Bearing Type | Double Sealed Ball |
| Full Load Amperage | 13.5 - 12.5/6.2 |
| Insulation Class | F |
| Frame Material | Steel |
| Service Factor Rating | 1.00 |
| Applications | Food Processing |
| Thermal Protection | None |
| Number Of Speeds | 1 |
| Type | TEFC |
| Product Service Code | 6105 |
| UNSPSC Code | 26111600 |
| MSC Part # | 73629974 |
| Mfr Part # | WD5P2DC |
| Country of Origin Country of Origin is subject to change | Mexico |
