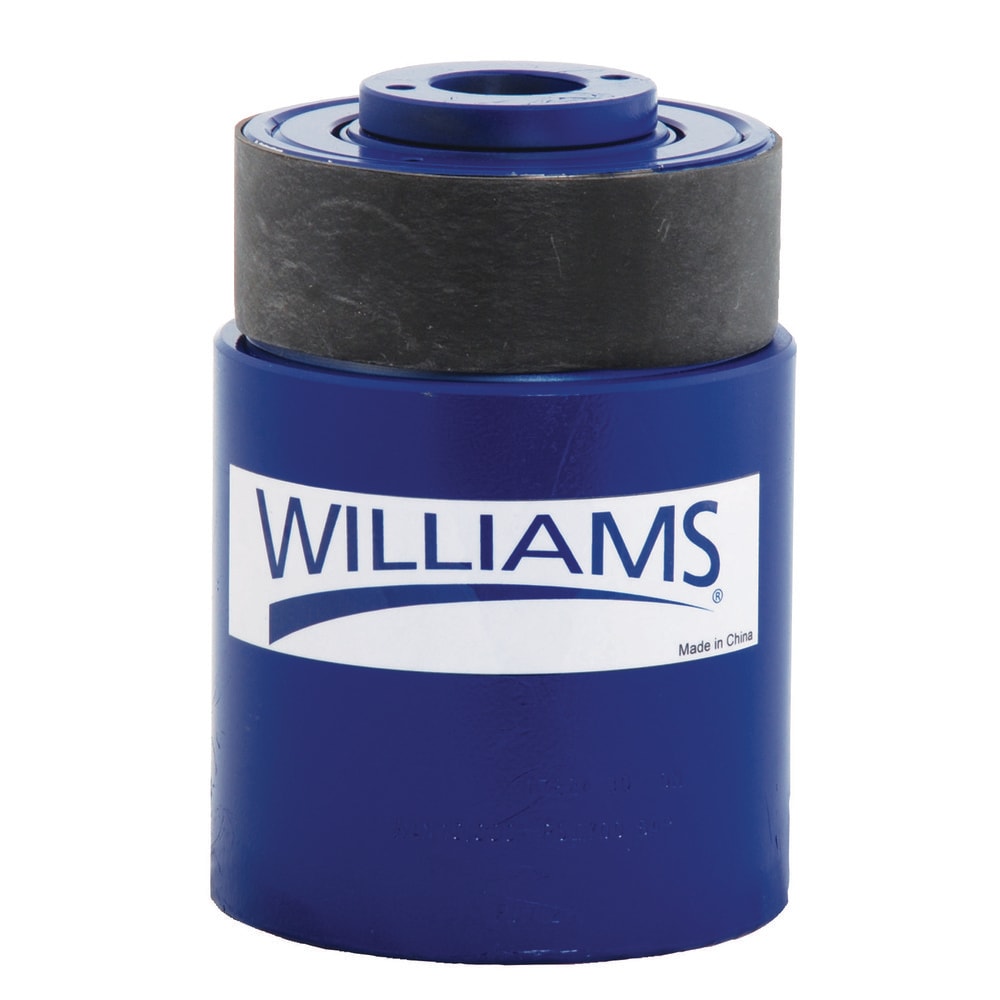

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 100 TON; Stroke Length: 3; Piston Stroke (Decimal Inch): 3.0000; Oil Capacity: 90.00; Cylinder Effective Area: 22.13; Lowered Height: 10
Item #: 54364492
Brand: Williams
Model #: 6CH100T03
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 100 TON |
| Stroke Length | 3 |
| Piston Stroke (Decimal Inch) | 3.0000 |
| Oil Capacity | 90.00 |
| Cylinder Effective Area | 22.13 |
| Lowered Height | 10 |
| Retracted Length | 10 |
| Extended Length | 13 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 8.386 |
| Rod Diameter | 4.92 |
| Plunger Type | Hollow |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .98 |
| Saddle Diameter | 2.95 |
| Plunger Internal Thread Size | .96 |
| Plunger Internal Thread Length | 4 |
| Y Center Hole Diameter | 3.11 |
| Maximum Height (Inch) | 13 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
