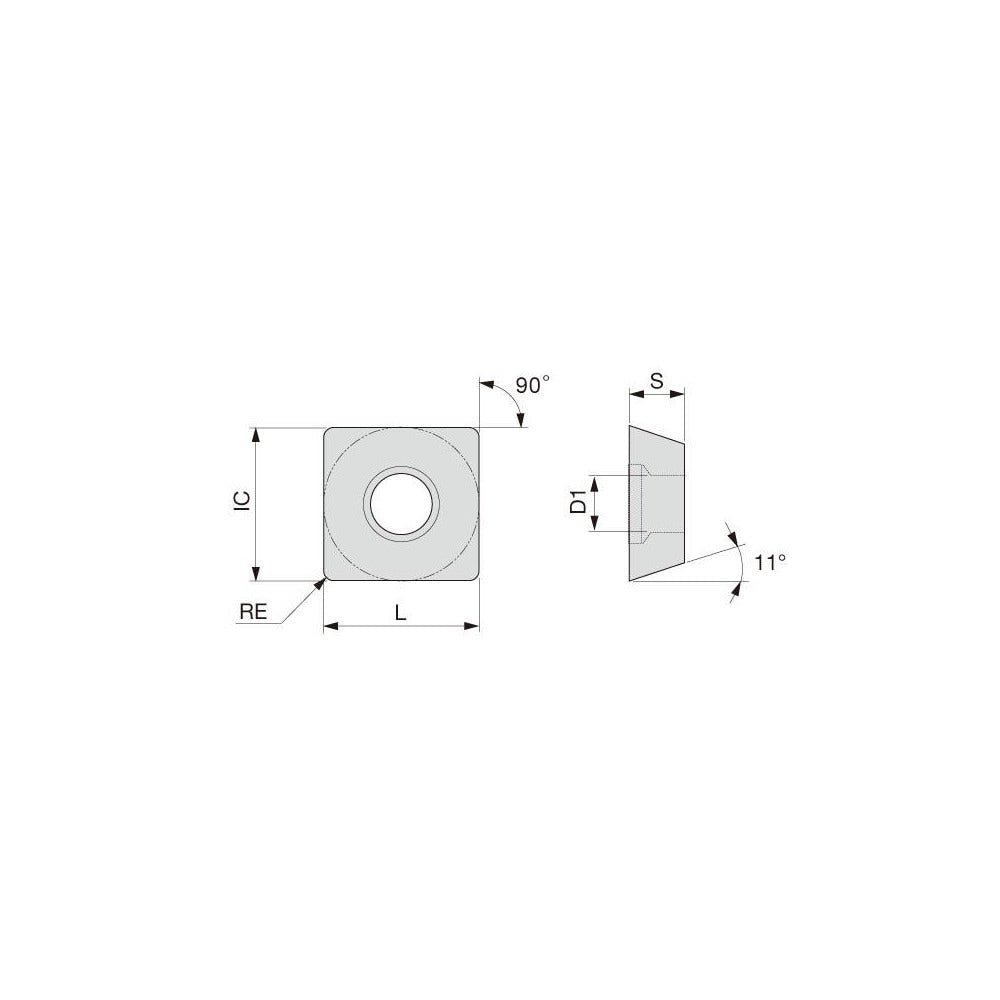

Turning Insert: SPMT321PS T6120, Carbide
Item #: 20899852
Brand: Tungaloy
Model #: 6994661
Product Specifications
| ANSI Insert Code | SPMT321 |
| ISO Insert Code | SPMT090304 |
| Relief Angle | 11 |
| Insert Style | SPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90 |
| Manufacturer Grade | T6120 |
| Coating/Finish | TiCN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | SPMT-PS |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Finishing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3750 |
| Insert Length (Inch) | 3/8 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | SPMT321-PS T6120 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6994661 |
| Material Grade | M20; M10; P10; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | PS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed |
| Industry Standard Number | SPMT 321 PS |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 321 |
