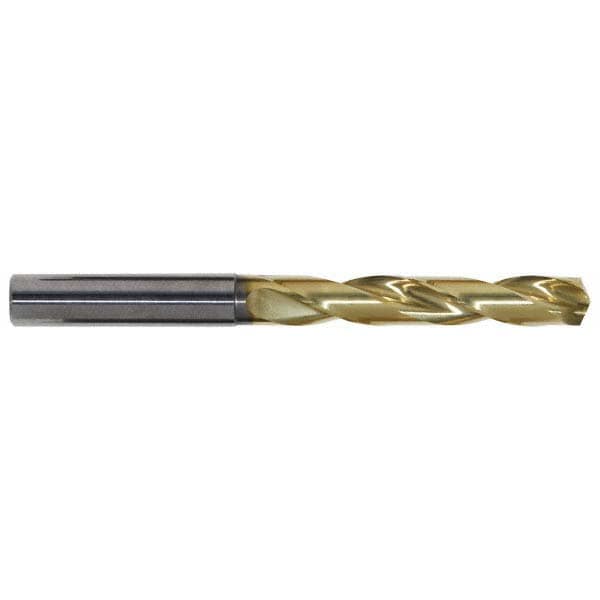

Jobber Drill: 0.1969" Dia, 140 deg Point, Solid Carbide
Item #: 76144591
Brand: Guhring
Model #: 9016620050000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | High-Temp Alloy |
| Specification Number | DIN 6537L |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.3906 |
| Overall Length (mm) | 82.04 |
| Overall Length (Decimal Inch) | 3.2300 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.94 |
| Flute Length (Decimal Inch) | 1.7300 |
| Series | 1662 |
| Tool Application | Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (Decimal Inch) | 1.8750 |
| Maximum Drilling Depth (mm) | 36.50 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | 0.004 to 0.016 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 6535; DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
