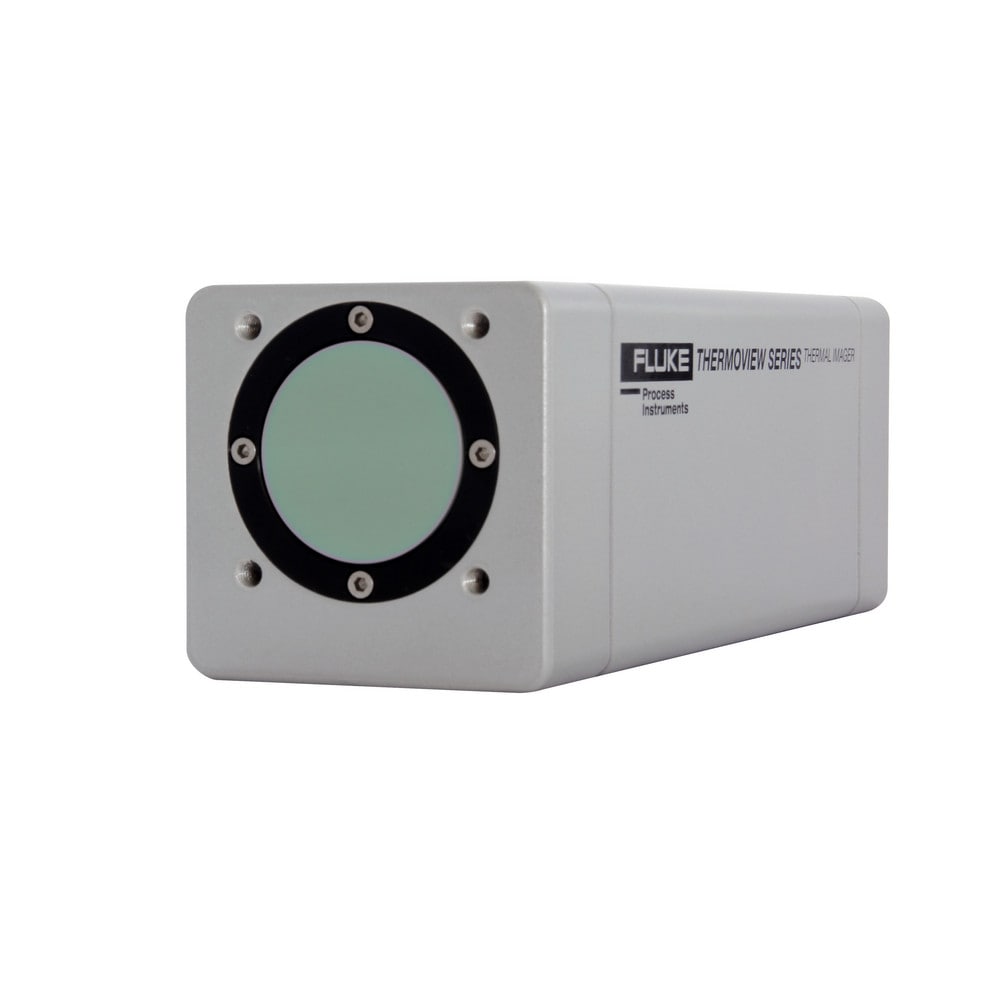

Fluke TV36-SA-L-T-60 Fixed Thermal Imager
Item #: 76037886
Brand: Fluke
Model #: TV36-SA-L-T-60
Product Specifications
| Camera Type | Thermal Imaging IR Camera |
| Display Type | LED |
| Accuracy (C) | +/- 2% |
| Resolution | 640 x 480 |
| Field Of View | 22 Degrees Horizontal x 16 Degrees Vertical |
| Batteries Included | No |
| Focus Method | Auto |
| Frame Rate | 60 |
| Minimum Temperature (Deg F - 3 Decimals) | 14.000 |
| Minimum Temperature (C - 2 Decimals) | -10.00 |
| Maximum Temperature (F) ( - 0 Decimals) | 122.000 |
| Maximum Temperature (C) | 50.00 |
| Minimum Emissivity | 0.10 |
| Minimum Focus Distance (Decimal Inch) | 3.94 |
| Overall Depth (Decimal Inch) | 22.7000 |
| Overall Height (Decimal Inch) | 11.3000 |
| Overall Width (Decimal Inch - 4 Decimals) | 14.7000 |
| Features | No PC or software required. Multiple AOI?s and Alerting. Fieldbus protocols and I/O. Built for the harshest environments. |
| Includes | Thermal Camera |
| Standards | IP67 |
| Series | TV30 |
| Additional Information | Lens Type: Telephoto 22°x16° |
| Manufacturer's Part Number | 5430403 |
| UNSPSC Code | 41115325 |
| Country of Origin | Germany |
