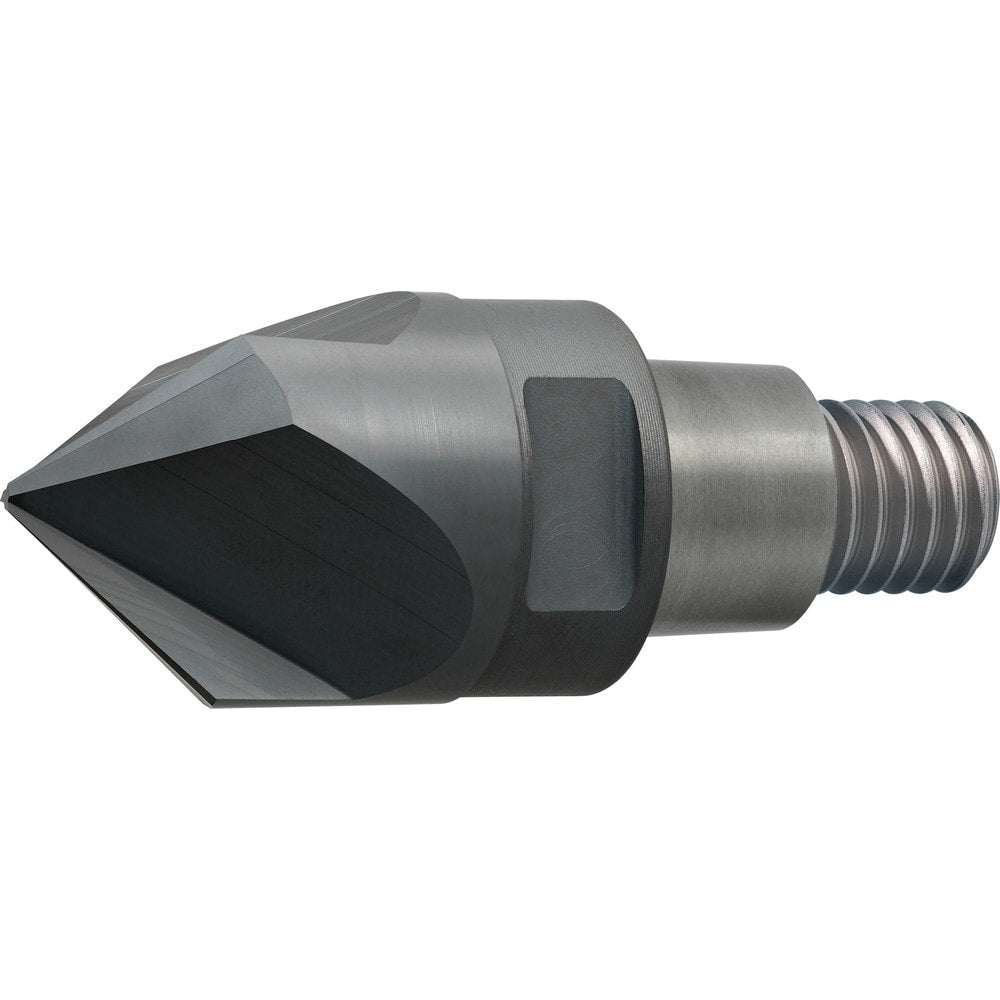

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 19.05; Mill Diameter (Inch): 3/4; Chamfer Width (mm): 8.760; Chamfer Width (Decimal Inch): 0.345; Chamfer Angle: 55.000; Length of Cut (mm): 8.7600; Number Of Flutes: 3
Item #: 76131713
Brand: Mitsubishi
Model #: 10528174
Product Specifications
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Inch) | 3/4 |
| Chamfer Width (mm) | 8.760 |
| Chamfer Width (Decimal Inch) | 0.345 |
| Chamfer Angle | 55.000 |
| Length of Cut (mm) | 8.7600 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 30.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 1.1811 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Centercutting | No |
| Connection Type | iMX20 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 4.5 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3450 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
