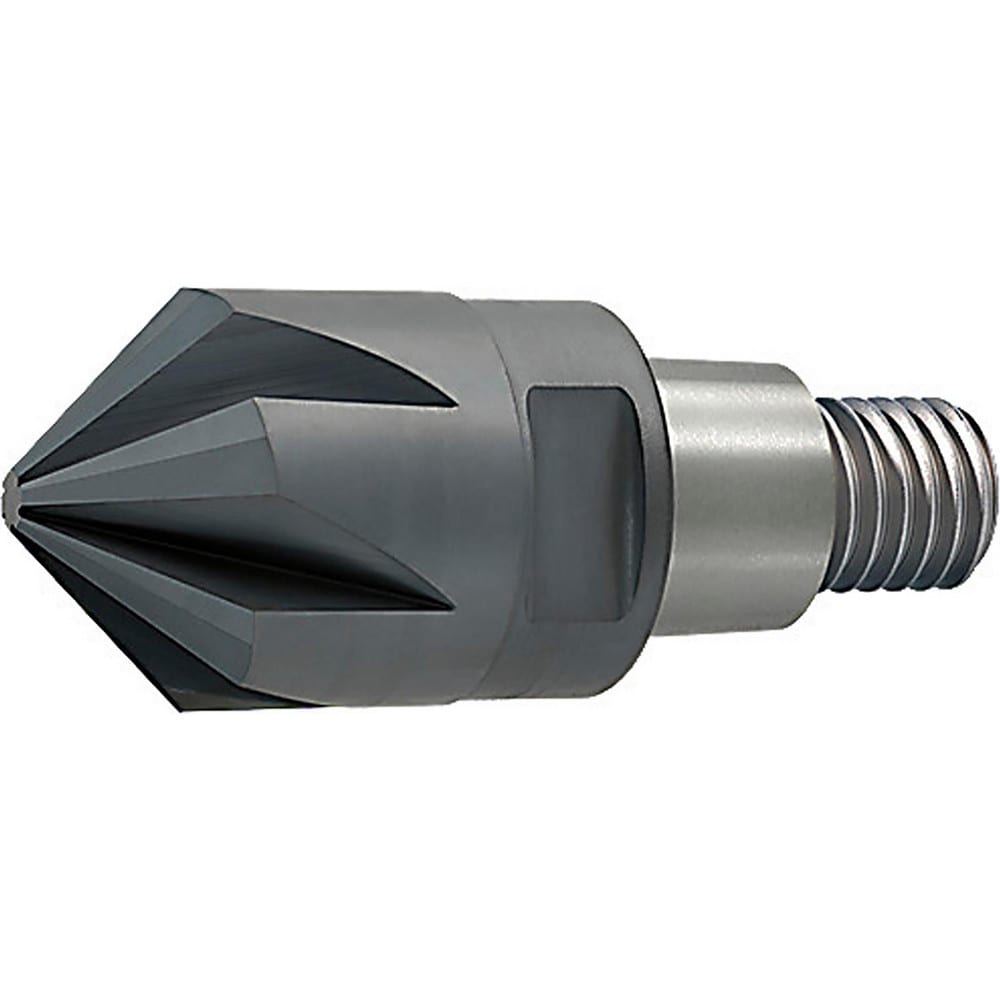

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 20.00; Chamfer Width (mm): 8.500; Chamfer Width (Decimal Inch): 0.335; Chamfer Angle: 51.000; Length of Cut (mm): 8.5000; Number Of Flutes: 6
Item #: 76131648
Brand: Mitsubishi
Model #: 10520819
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 8.500 |
| Chamfer Width (Decimal Inch) | 0.335 |
| Chamfer Angle | 51.000 |
| Length of Cut (mm) | 8.5000 |
| Number Of Flutes | 6 |
| Overall Length (mm) | 30.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 1.1811 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Centercutting | No |
| Connection Type | iMX20 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 3 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3346 |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
