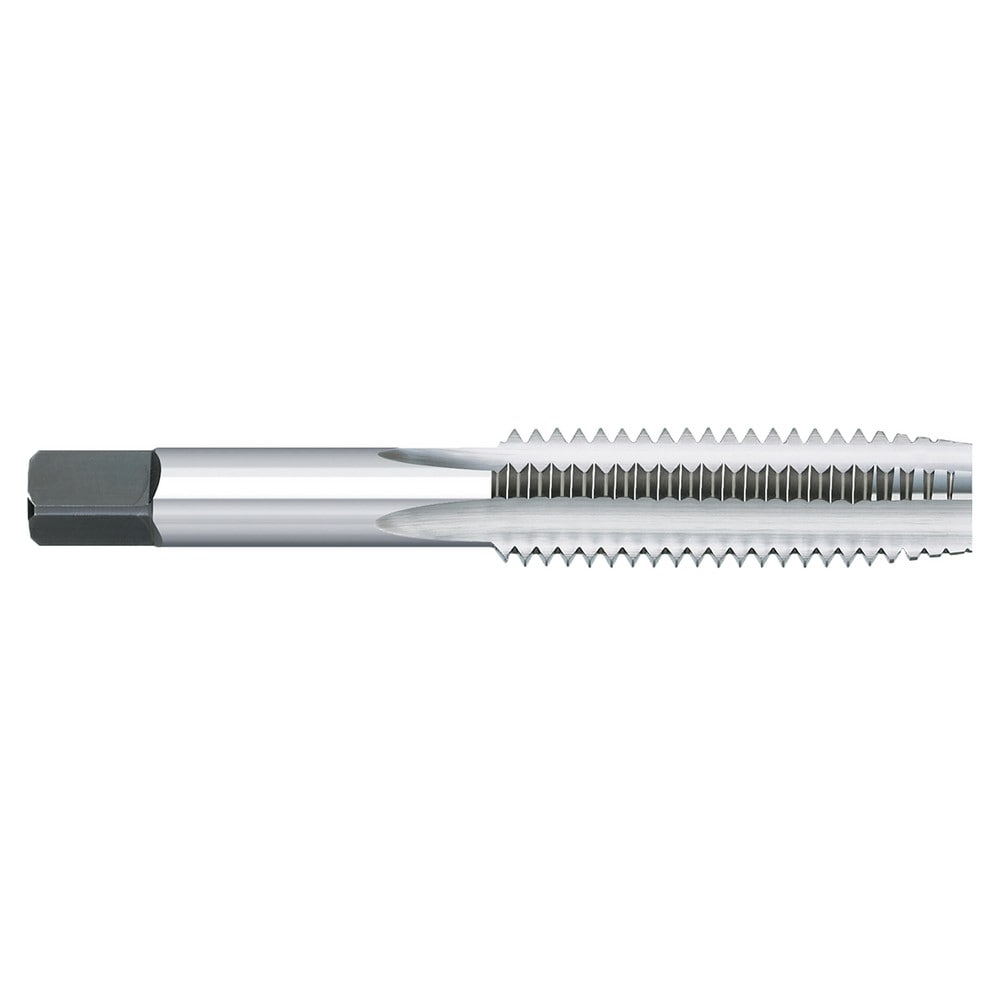

Brand: Titan USA / Part #: TT82946
Item #: 87743274
Brand: Titan USA
Model #: TT82946
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Thread Limit | H3 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 16 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-15/16 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Overall Length (Decimal Inch) | 2.9375 |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (Inch) | 7/16 |
| Square Size (Decimal Inch) | 0.2860 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - Left Hand |
