MIG Welders; Input Voltage: 120V; Input Amperage: DC; Minimum Output Amperage: 30 A; Maximum Output Amperage: 125 A; Open Circuit Voltage: 51 V; Duty Cycle: 90A@30%; Phase: Single; Frequency: 50

MIG Welders; Input Voltage: 120V; Input Amperage: DC; Minimum Output Amperage: 30 A; Maximum Output Amperage: 125 A; Open Circuit Voltage: 51 V; Duty Cycle: 90A@30%; Phase: Single; Frequency: 50


Item #: 55563464
Brand: ESAB
Model #: 0700301081

Product Specifications

Input Voltage 120V
Input Amperage DC
Minimum Output Amperage 30 A
Maximum Output Amperage 125 A
Open Circuit Voltage 51 V
Duty Cycle 90A@30%
Phase Single
Frequency 50
Minimum Wire Diameter 0.6 mm
Maximum Wire Diameter 0.9 mm
For Wire Type Flux Core; Solid
Portability Hand Held
Material Thickness 5 mm
Overall Length 23 in
Overall Width 8.7 in
Features multiple lift Points and Cable Management; Weld Material Thickness up to 5mm (3/16 in.); IP23S Rated for Indoor/Outdoor Use; Rugged industrial design; Large 14 Segment Display; Energy Safe Mode

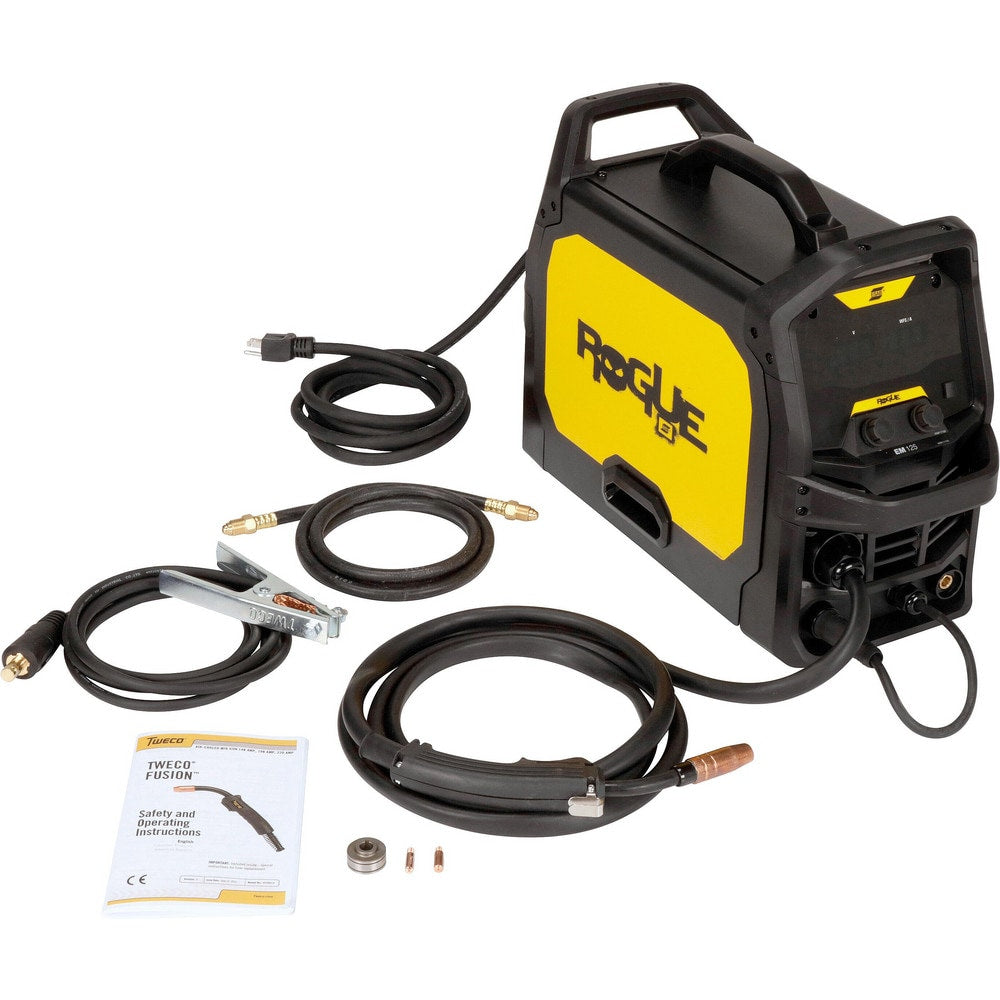

Includes 125A MIG/MAG Power Source; 0.6/0.8mm (0.023/0.030 in.) Contact Tips; 3 m (10 ft.) Gas Hose with 5/8 in. RH Fittings; 3 m (10 ft.) OKC 25 Heavy-Duty Return Cable Kit; 0.6/0.8mm (.023/.030 in) Feed Rolls; 3 m (10 ft.) Integrated MIG/MAG Gun
Standards UL
Height (Decimal Inch) 15 in
UNSPSC Code 23271408
Input Voltage 120V
Input Amperage DC
Minimum Output Amperage 30 A
Maximum Output Amperage 125 A
Open Circuit Voltage 51 V
Duty Cycle 90A@30%
Phase Single
Frequency 50
Minimum Wire Diameter 0.6 mm
Maximum Wire Diameter 0.9 mm
For Wire Type Flux Core; Solid
Portability Hand Held
Material Thickness 5 mm
Overall Length 23 in
Overall Width 8.7 in
Features multiple lift Points and Cable Management; Weld Material Thickness up to 5mm (3/16 in.); IP23S Rated for Indoor/Outdoor Use; Rugged industrial design; Large 14 Segment Display; Energy Safe Mode
Includes 125A MIG/MAG Power Source; 0.6/0.8mm (0.023/0.030 in.) Contact Tips; 3 m (10 ft.) Gas Hose with 5/8 in. RH Fittings; 3 m (10 ft.) OKC 25 Heavy-Duty Return Cable Kit; 0.6/0.8mm (.023/.030 in) Feed Rolls; 3 m (10 ft.) Integrated MIG/MAG Gun
Standards UL
Height (Decimal Inch) 15 in
UNSPSC Code 23271408
MSC Part # 55563464
Mfr Part # 0700301081
Country of Origin Country of Origin is subject to change China
$951.64
