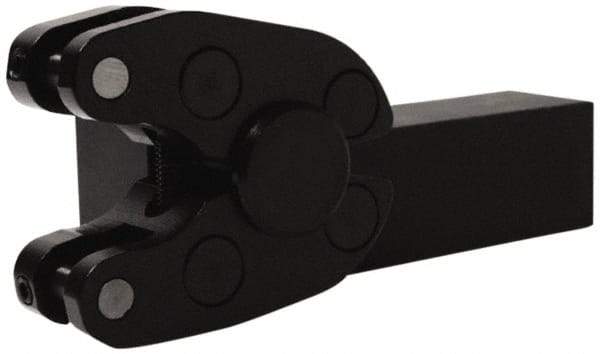

Made in USA - 5 Inch Overall Length x 1-1/4 Inch Overall Width, 0.06 to 3/4 Inch Capacity, Right Hand Cut, Scissor and Straddle Type Knurler - 1/2 Inch Diameter, 4 Inch Shank Length x 5/8 Inch Shank Width x 5/8 Inch Shank Height, Square Shank, EP Series
Item #: 78150331
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Capacity (Decimal Inch) | 0.7500 |
| Minimum Capacity (Decimal Inch) | 0.0600 |
| Cutting Direction | Right Hand |
| Knurl Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Length (Inch) | 4 |
| Knurl Face Width (Inch) | 3/16 |
| Knurl Hole Diameter (Inch) | 3/16 |
| Number of Knurls Required | 2 |
| Knurl Series | EP |
| Includes Knurl Wheels | No |
| Shank Shape | Square |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Width (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.8800 |
| Head Height (Decimal Inch) | 1.75 |
| Head Width (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
