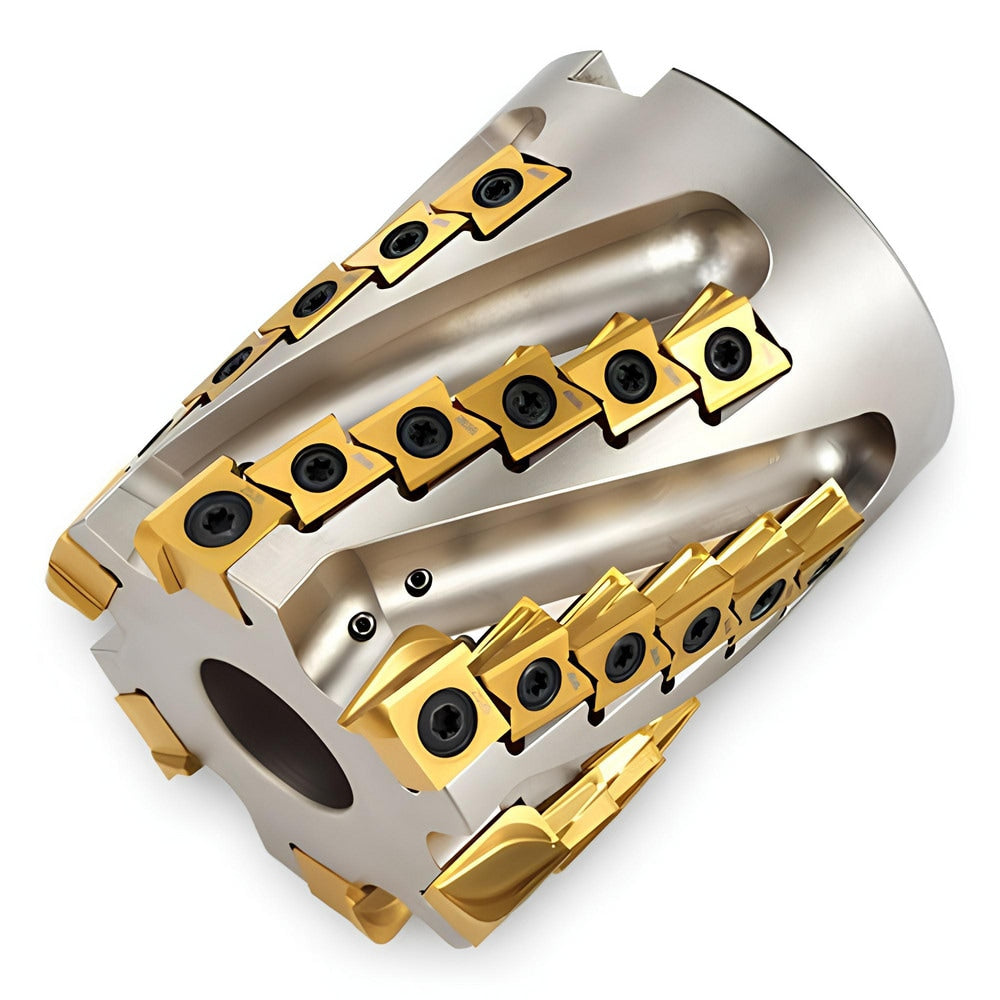

Brand: Ingersoll Cutting Tools / Part #: 2923683
Item #: 96670666
Brand: Ingersoll Cutting Tools
Model #: 2923683
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Minimum Cutting Diameter (mm) | 63.50 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 3.8060 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 324 |
| Cutter Style | 2XJ3J |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | 2XJ3J |
| Maximum Body Diameter (mm) | 61.47 |
| Maximum Body Diameter (Decimal Inch) | 2.4200 |
| Overall Height (Inch) | 4-1/2 |
| Overall Height (Decimal Inch) | 4.5000 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Pitch Type | Close |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 3.8060 |
| Complete Insert Compatibility | IPM324? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 2XJ3J-25045D3R01 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 40 |
| Number Of Flutes | 5 |
