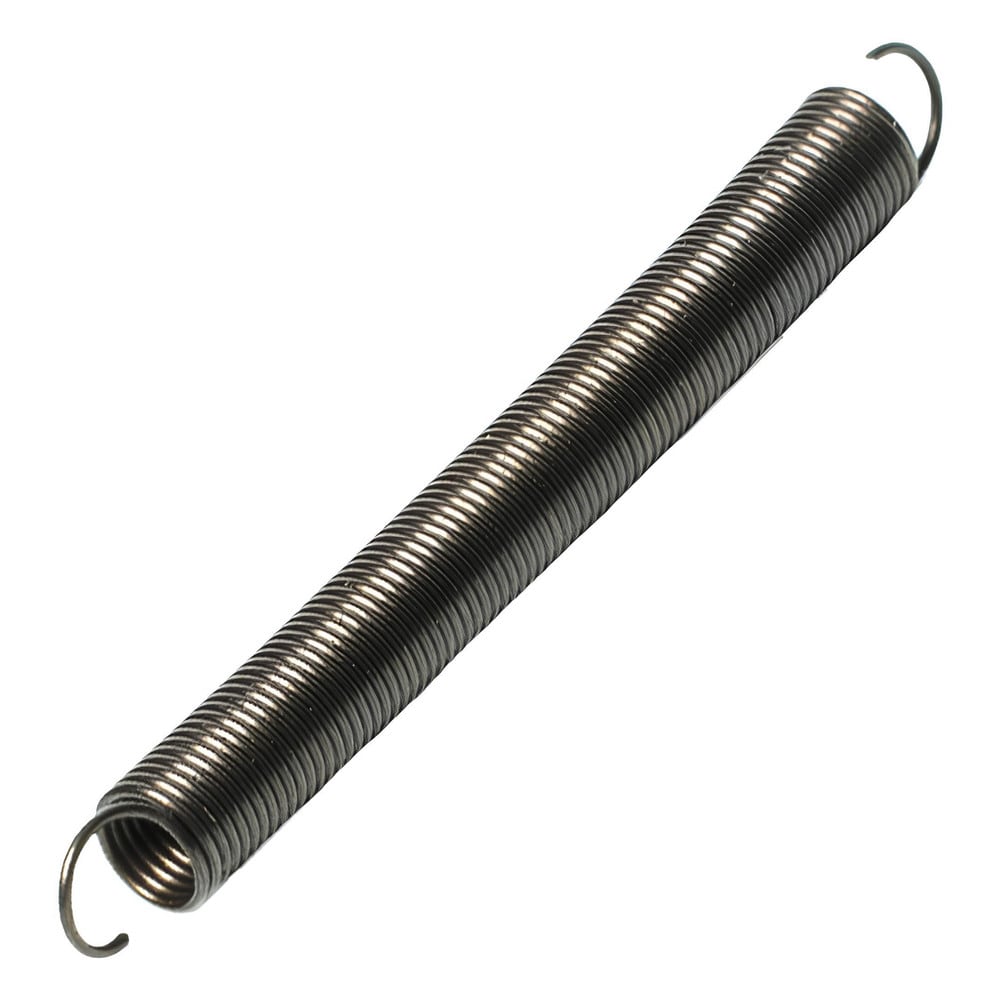

Extension Springs; End Type: Hook; Outside Diameter (mm): 5.0000; Spring Rate: 7.0000; Material: Music Wire; Overall Length (Decimal Inch): 0.9960
Item #: 03184348
Brand: Associated Spring Raymond
Model #: MHM0500700024M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 5.0000 |
| Spring Rate | 7.0000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 0.9960 |
| Initial Tension (N) | 3.9 |
| Maximum Extended Length (mm) | 39.60 |
| Free Length (mm) | 24.000 |
| Inside Hook Length (Fractional Inch) | 15/16 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 0.70 |
| UNSPSC Code | 31161907 |
