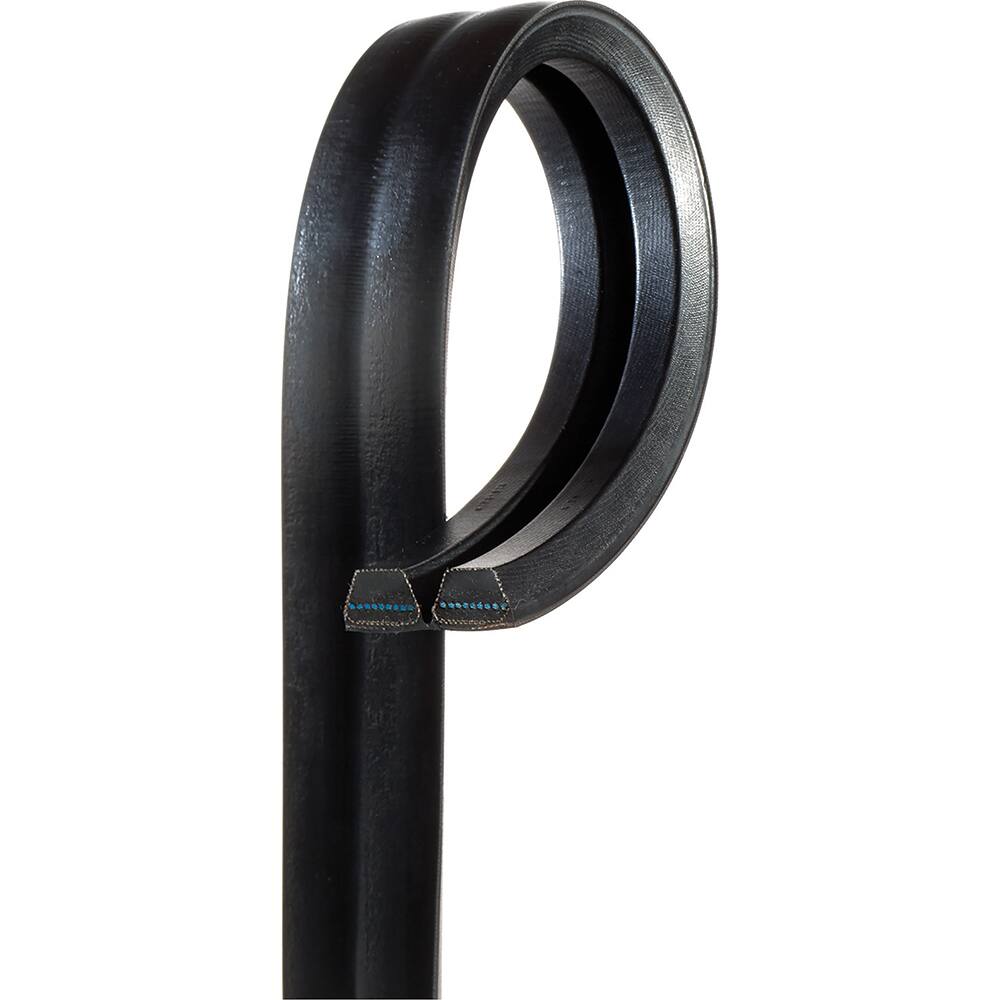

Gates - Belts Belt Style: V-Belts Belt Section: 8V
Item #: 96330162
Brand: Gates
Model #: 93893085
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 8V ; Outside Length: 236.500 (Decimal Inch); Outside Length: 6007.10 (mm); Belt Width: 1.016 (Decimal Inch); Belt Width: 25.81 (mm)
| Belt Style | V-Belts |
| Belt Section | 8V |
| Outside Length (Decimal Inch) | 236.500 |
| Outside Length (mm) | 6007.10 |
| Belt Width (Decimal Inch) | 1.016 |
| Belt Width (mm) | 25.81 |
| Belt Number | 8V2360 |
| Belt Internal Length (Decimal Inch) | 230.95 |
| Belt Internal Length (mm) | 5866.13 |
| Number of Ribs | 0.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Neoprene |
| Belt Height | 0.883 |
| Color | Black |
| Style | Banded V-Belt |
| Maximum Temperature (F) | 180 |
