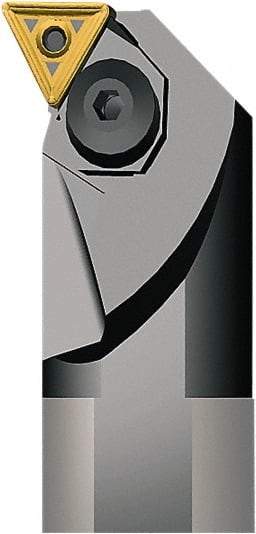

Seco - 50mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, A-PTFN Indexable Boring Bar - 60mm Max Bore Depth, TNM. 2204.. Insert, Pin Lock Assembly Holding Method
Item #: 77899326
Brand: Seco
Model #: 25014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PTFN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | TNM. 2204.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | TNMA 220408; TNMA 220412; TNMA 220416; TNMG 220404-M5; TNMG 220404-MF2; TNMG 220404-MF3; TNMG 220404-MR4; TNMG 220408-M1; TNMG 220408-M3; TNMG 220408-M5; TNMG 220408-MF2; TNMG 220408-MF3; TNMG 220408-MF4; TNMG 220408-MR4; TNMG 220408-MR6; TNMG 220408-MR7; |
| Toolholder Material | Steel |
