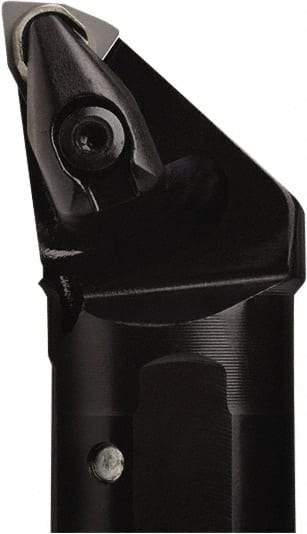

Seco - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-DWLN Indexable Boring Bar - 38mm Max Bore Depth, WN.. 0604.. Insert, Pin & Clamp Holding Method
Item #: 77898591
Brand: Seco
Model #: 35962
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DWLN |
| Series | Pin & Clamp |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 38.00 |
| Maximum Bore Depth (Decimal Inch) | 1.4961 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | WN.. 0604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNGA 060404S-01020; WNGA 060408S-01020; WNGA 060408S-01020-WZ; WNGA 060408S-01525-WZ; WNMA 060408S; WNMA 060416S |
| Toolholder Material | Steel |
