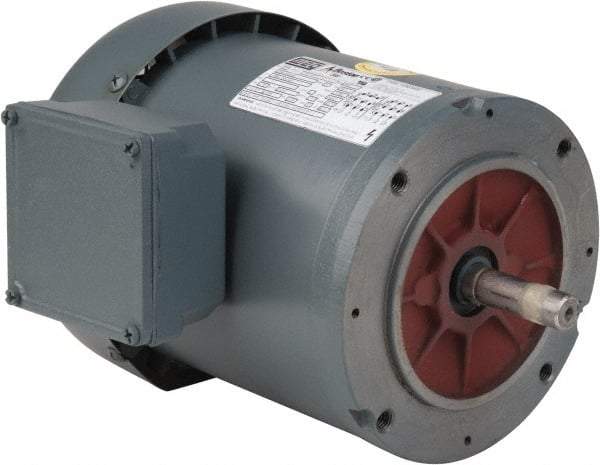

Boston Gear - 5 hp, TEFC Enclosure, T-Stat Thermal Protection, 1,740 RPM, 230/460 Volt, 50/60 Hz, Three Phase Motor - Size 184TC Frame, C-Face Mount, 1 Speed, Ball Bearings, 13.8/6.90 Full Load Amps, F Class Insulation, Reversible
Item #: 77829836
Brand: Boston Gear
Model #: 65448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | TEFC |
| Horsepower | 5.00 |
| Thermal Protection Rating | T-Stat |
| Name Plate RPMs | 1740 |
| Voltage | 230/460 |
| Frequency Hz | 50/60 |
| Frame Size | 184TC |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball Bearings |
| Applications | General Purpose |
| Full Load Amperage | 13.8/6.90 |
| Insulation Class | F |
| Frame Material | Rolled Steel |
| Overall Length (Decimal Inch) | 15.8600 |
| Shaft Diameter x Length (Inch) | 1-1/8 x 2-3/4 |
| Full Load Efficiency Rating | 87.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Length of Enclosure (Decimal Inch) | 15.860 |
| PSC Code | 6105 |
