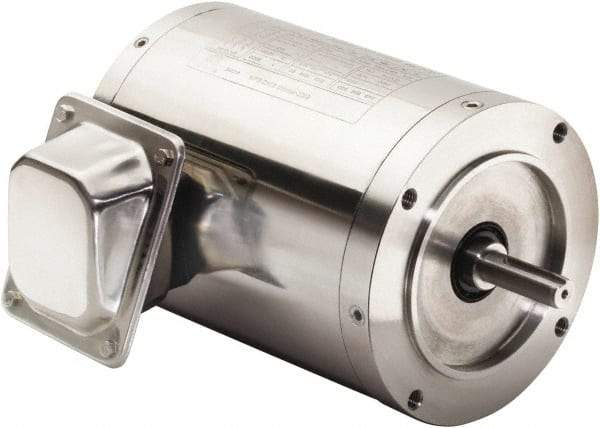

Boston Gear - 0.5 hp, TENV Enclosure, T-Stat Thermal Protection, 1,720 RPM, 230/460 Volt, 50/60 Hz, Three Phase Motor - Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 1.62/0.81 Full Load Amps, F Class Insulation, Reversible
Item #: 77829828
Brand: Boston Gear
Model #: G00623
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | TENV |
| Horsepower | 0.50 |
| Thermal Protection Rating | T-Stat |
| Name Plate RPMs | 1720 |
| Voltage | 230/460 |
| Frequency Hz | 50/60 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball Bearings |
| Applications | Food & Beverage Processing |
| Full Load Amperage | 1.62/0.81 |
| Insulation Class | F |
| Frame Material | Stainless Steel |
| Overall Length (Decimal Inch) | 9.6400 |
| Shaft Diameter x Length (Inch) | 5/8 x 1-7/8 |
| Full Load Efficiency Rating | 81.2 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Length of Enclosure (Decimal Inch) | 9.640 |
| PSC Code | 6105 |
