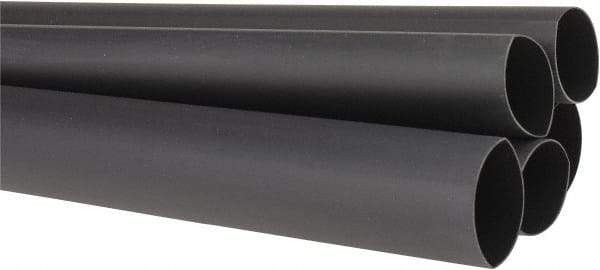

3M - 48" Long, 2:1, Polyolefin Heat Shrink Electrical Tubing - Black
Item #: 77677367
Brand: 3M
Model #: 00051128596043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | Polyolefin |
| Shrink Ratio | 2:1 |
| Overall Length (Decimal Inch) | 48 |
| Overall Length (Feet) | 4.00 |
| Minimum Compatible Wire Size (AWG) | 2 |
| Color | Black |
| Inside Diameter Before Shrinking (mm) | 25.40 |
| Inside Diameter Before Shrinking (Inch) | 1 |
| Inside Diameter Before Shrinking (Decimal Inch) | 1 |
| Inside Diameter After Shrinking (Decimal Inch) | 1/2 |
| Inside Diameter After Shrinking (mm) | 12.70 |
| Shrink Temperature (F) | 212.00 |
| Resistance Features | Corrosion Resistant; Fire Resistant; Fungus Resistant; Solvent Resistant; Split Resistant |
| Wall Thickness After Shrinking (mm) | 0.89 |
| Wall Thickness After Shrinking (Decimal Inch) | 0.0350 |
| Maximum Operating Temperature (F) | 275 |
| Minimum Operating Temperature (F) | -67 |
| Standards Met | ABS Type Approved; AMS3636; AMS3637; CSA Certified; CSA LR38227; DTL-23053/5 Class 1 Class 2; UL Recognized File E39100 |
