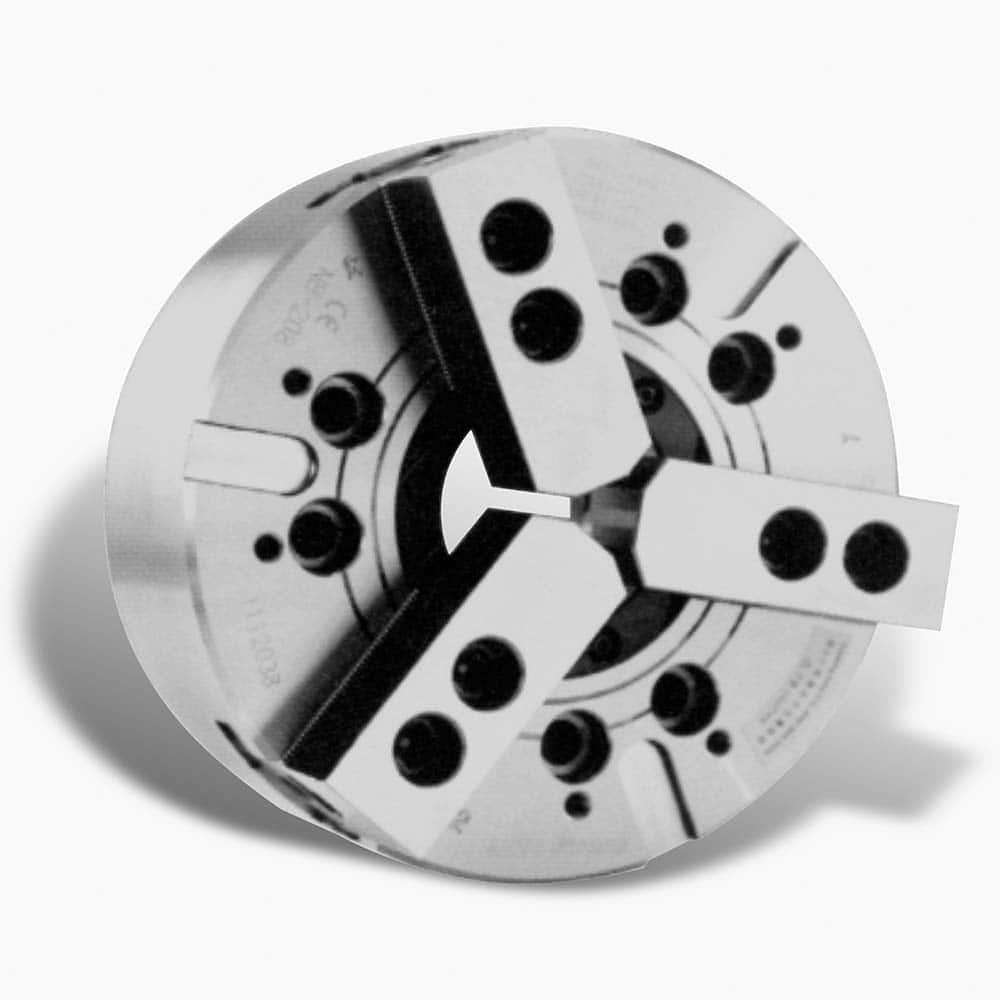

Atlas Workholding - 3 Jaw 12" Diam A2-11 Lathe Chuck
Item #: 77639417
Brand: Atlas Workholding
Model #: ATLB12-A11
Product Specifications
| Chuck Diameter (Decimal Inch) | 12.4010 |
| Number of Jaws | 3 |
| Mount | A2-11 |
| Through-Hole Diameter (Decimal Inch) | 4.0550 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 2.1260 |
| Maximum Jaw Capacity (Decimal Inch) | 12.4000 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4710 |
| Piston Stroke Length (Decimal Inch) | 0.9050 |
| Maximum Drawbar Pulling Force (lbf) | 12363.00 |
| Maximum Static Gripping Force (lbf) | 32376.00 |
| Maximum RPM | 2800 |
