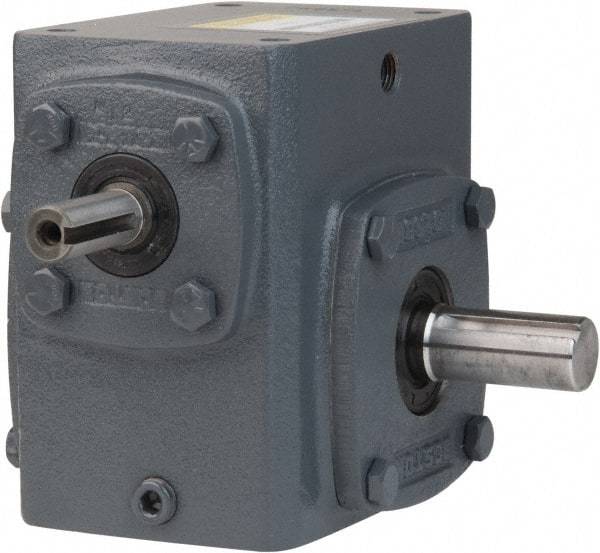

Boston Gear - 1-3/4 Centerline Distance, 20:1, 88 RPM Output, 0.97 Input Horsepower, 590 Lbs. Max Torque, Speed Reducer - Part No. 718-20-J, 5/8" Shaft Diam, Single Shaft Right, 3.81" High
Item #: 77620425
Brand: Boston Gear
Model #: 51665
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.750 |
| Ratio | 20:1 |
| PartNo | 718-20-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.81 |
| Maximum Torque Inch/Lbs (Pounds) | 590.00 |
| Maximum Input Horsepower | 0.97 |
| Output RPM at 1750 Input | 88.0 |
