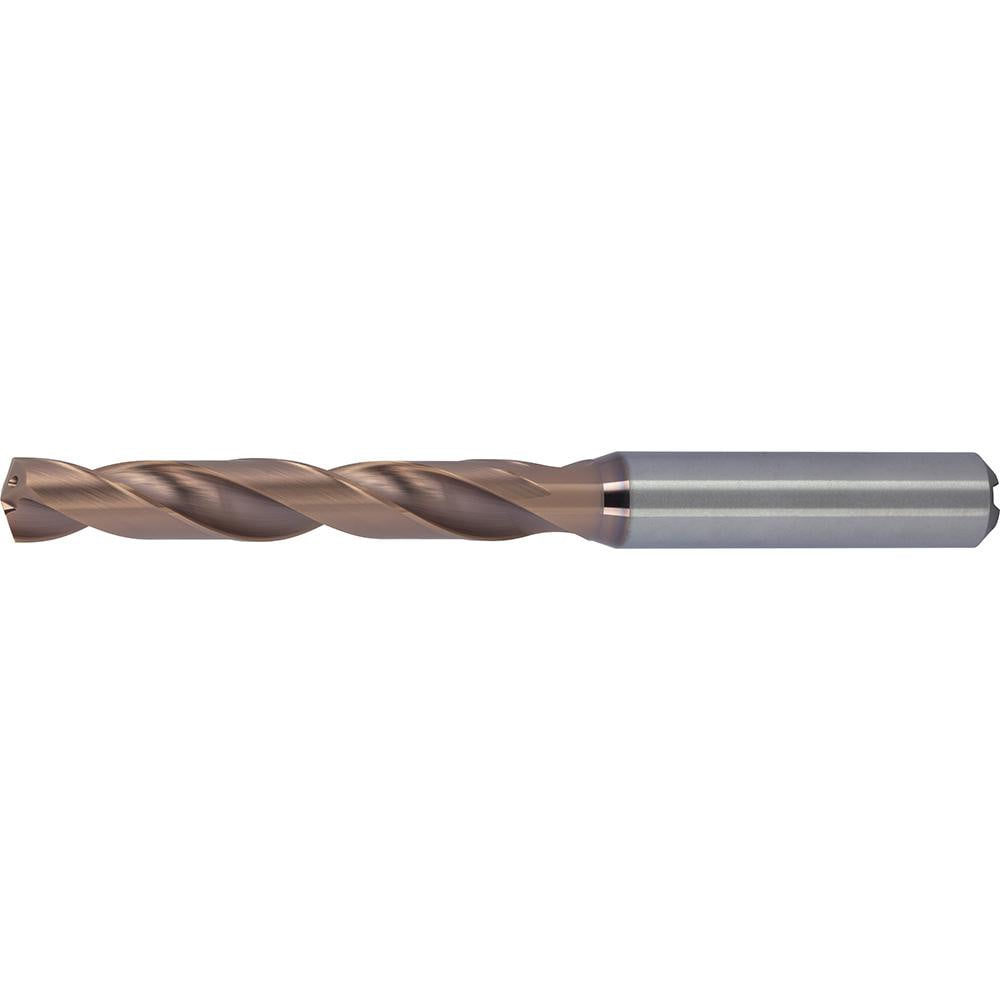

Jobber Drill: #28, 140 deg Point, Solid Carbide
Item #: 02249183
Brand: Emuge
Model #: TA211724.0357
Product Specifications
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Wire) | #28 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | AlCrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Proprietary Coating/Finish | ALCR-89 |
| Series | TA211724 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 22 |
| Shank Type | Straight |
| UNSPSC Code | 23241634 |
