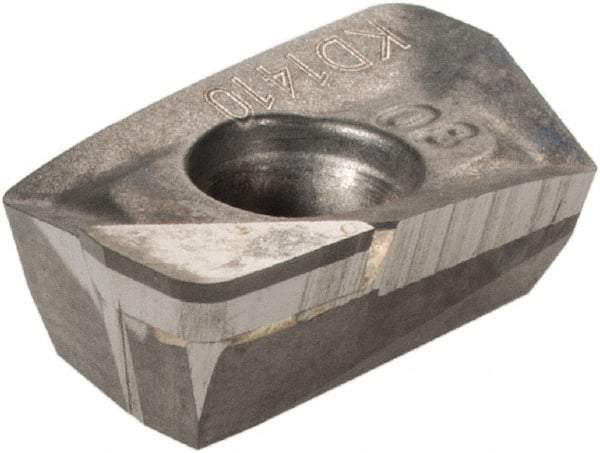

Kennametal - EC1008 Grade KD1410 PCD Milling Insert - Uncoated, 0.1476" Thick, 0.79mm Corner Radius
Item #: 77459717
Brand: Kennametal
Model #: 3759084
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1008 |
| Material | PCD |
| Manufacturer's Grade | KD1410 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2650 |
| Length (Decimal Inch) | 0.4744 |
| Thickness (Decimal Inch) | 0.1476 |
| Corner Radius (Decimal Inch) | 0.0311 |
| Corner Radius (mm) | 0.79 |
| Shape | Parallelogram |
| ISO Number | EDCT10T308PDFR-PCD |
